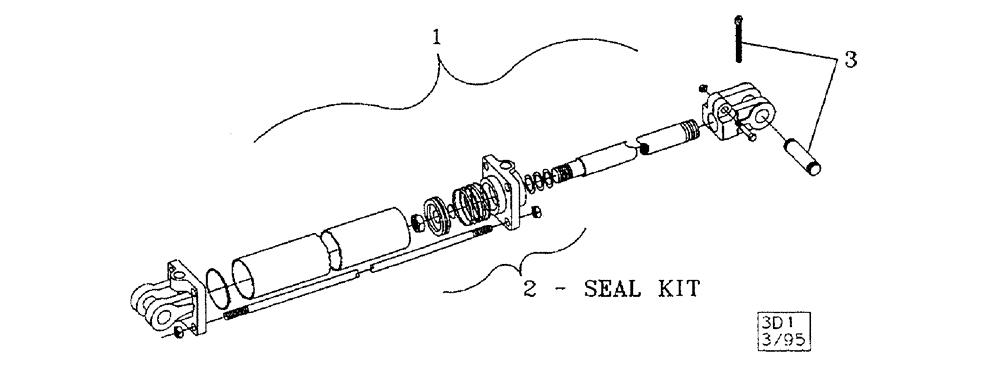

Запчасти Case IH 6750 (013) - HYDRAULIC CYLINDERS (08) - HYDRAULICS

1

25330082

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

hydraulic, 3" bore x 8" stroke - SAE ports (20-1/4" closed)- 3,000 p.s.i., coulter, disc and main lift, 7 & 9 shank

1шт.

1

25335081

CYLINDER,Double Acting, 203.2mm Stroke

hydraulic, 3-1/2" bore x 8" stroke - SAE ports (20-1/4" closed)- 3,000 p.s.i., main lift, 11 & 13 shank

1шт.

1

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

hydraulic, 2-1/2" x 16" stroke - SAE ports (26-1/4" closed)- 3,000 p.s.i., disc frame wings

1шт.

2

25833007

SEAL KIT

seal - 1-1/4" diameter rod - 3", 3" x 8" coulter, disc and main lift, 7 & 9 shank

1шт.

2

25833526

SEAL KIT

seal - 1-1/2" diameter rod - 3-1/2", 3-1/2" x 8" main lift, 11 & 13 shank

1шт.

2

25832510

SEAL KIT

seal - 1-1/4" diameter rod - 2-1/2", 2-1/2" x 16" disc frame wings

1шт.

3

25890100

KIT

clevis, 1" diameter x 3" (includes 2-pins and 2-cotter pins), 3" x 8" coulter, disc and main lift, 7 & 9 shank, 3-1/2" x 8" main lift, 11 & 13 shank, 2-1/2" x 16" disc frame wings

1шт.
