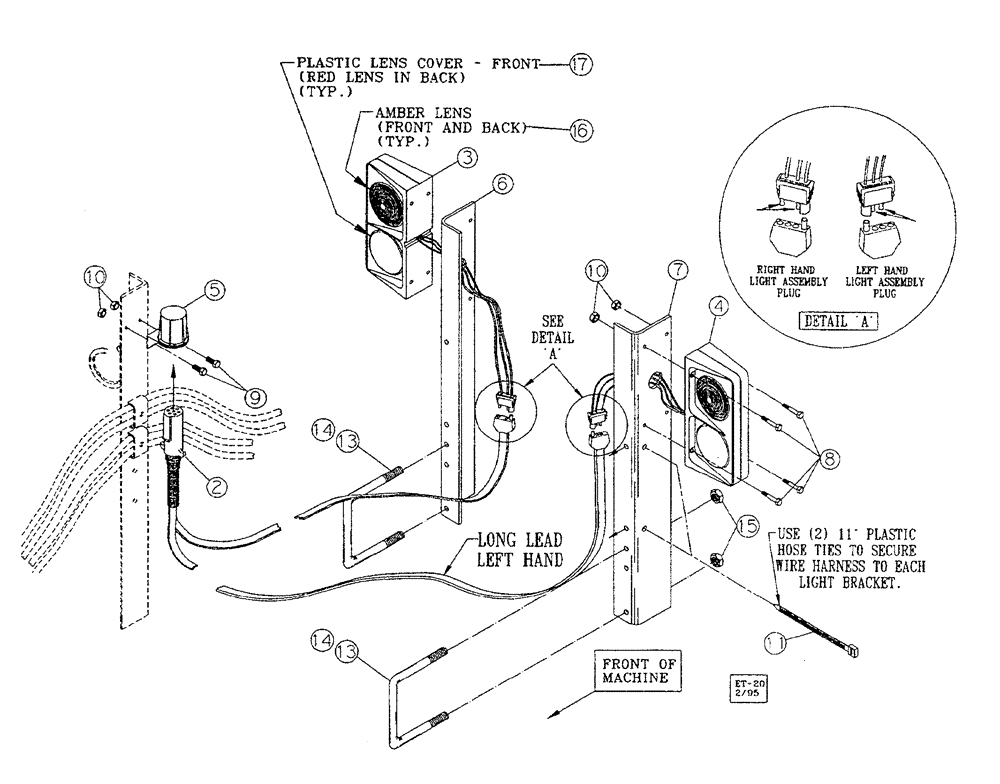

Запчасти Case IH 6750 (015) - WARNING AND TAIL LIGHT KIT (04) - ELECTRICAL SYSTEMS

2

27601211

HARNESS

wiring

1шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.

3

27601212

LIGHT ASSY.

fixture, R.H.

1шт.

4

27601213

LIGHT ASSY.

fixture, L.H.

1шт.

5

27601214

HOLDER

CONTAINER plug storage

1шт.

6

27601201

SHEET

BRACKET light, R.H.

1шт.

7

27601202

SHEET

BRACKET light, L.H.

1шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

10

230-4114

NUT,1/4"-20, GA

10шт.

11

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP TIE plastic hose, 11"

1шт.

12

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP TIE plastic hose, 28"

1шт.

13

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 4" x 6"

2шт.

14

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8" x 4" x 4" (used with Leveler Attachment)

2шт.

15

230-4116

LOCK NUT,3/8"-16, GA

4шт.

16

27601215

LENS

replacement - amber

1шт.

17

27601216

LENS

replacement - red

1шт.
