Запчасти Case IH 6750 (012) - HUBS & SPINDLES (09) - CHASSIS

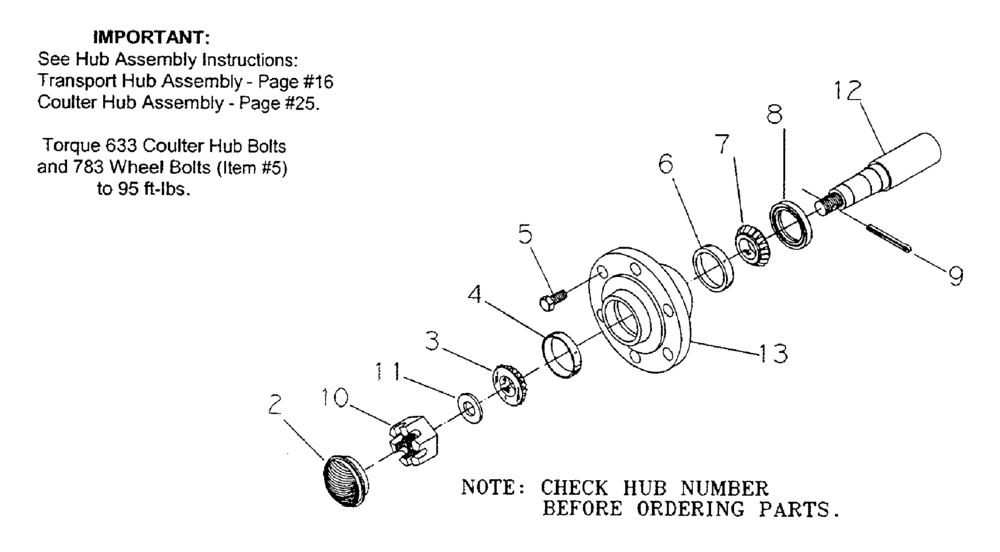

Схема запчастей Case IH 6750 - (012) - HUBS & SPINDLES (09) - CHASSIS
13
7
12
11
3
6
5
8
2
9
10
4

Артикул

Название

Примечание

Количество

2

28463300

HUB CAP

633 coulter blade

1шт.

2

28477700

HUB CAP

783 transport wheels

1шт.

3

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

bore, .75", 633 coulter blade hub

1шт.

3

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

bore, 1.25", 783 transport wheels

1шт.

4

651814R1

BEARING CUP

1.78" O.D., 633 coulter blade hub

1шт.

Part of Ref. 13, part number 28263340

1шт.

4

651817R1

BEARING CUP

2.33" O.D., 783 transport wheels

1шт.

Part of Ref. 13, part number 28278300

1шт.

5

S0000210

BOLT

BOLT hex, 1/2" x 1-1/4" NF, GD. 5, 633 coulter blade hub

4шт.

5

16408053

SPECIAL BOLT

wheel, 1/2" x 1" NF, GD. 5, 783 transport wheels

6шт.

6

651817R1

BEARING CUP

2.33" O.D., 633 coulter blade hub

1шт.

Part of Ref. 13, part number 28263340

1шт.

6

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

2.89" O.D., 783 transport wheels

1шт.

Part of Ref. 13, part number 28278300

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

bore, 1.25", 633 coulter blade hub

1шт.

7

21871630

ROLLER BEARING,41.288 mm ID x 19.76 mm

bore, 1.62", 783 transport wheels

1шт.

8

126621C1

SEAL

1.50" I.D. x 2.33" O.D., 633 coulter blade hub

1шт.

8

T54255

OIL SEAL

3.00" O.D. x 1.875" I.D., 783 transport wheels

1шт.

9

432-1024

COTTER PIN,5/32" x 1 1/2"

633 coulter blade hub & 783 transport wheels

1шт.

10

425-1312

SLOTTED NUT,3/4"-16, G5

633 coulter blade hub

1шт.

10

425-1314

SLOTTED NUT,7/8"-14, G5

783 transport wheels

1шт.

11

495-21081

WASHER,3/4"

633 coulter blade hub

1шт.

11

95-31094

WASHER,7/8" x 2" x .165"

783 transport wheels

1шт.

12

28363311

AXLE

SPINDLE, 633 coulter blade hub

1шт.

12

28378305

SPINDLE

SPINDLE, 783 transport wheels

1шт.

13

28263340

HUB

with cups (Includes: Ref. 4 & 6), 633 coulter blade

1шт.

13

28278300

HUB

with cups (Includes: Ref. 4 & 6), 783 transport wheels

1шт.

Выбрано товаров: 28
