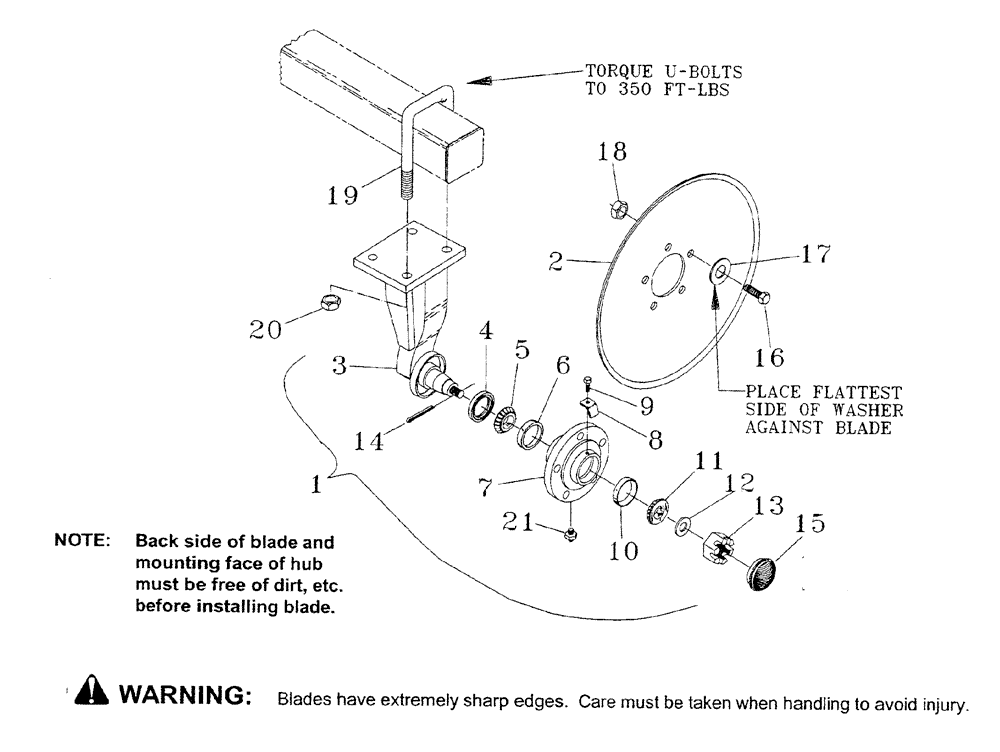

Запчасти Case IH 6750 (011) - DISC MOUNT (09) - CHASSIS

1

09971700

CENTRALIZER

MOUNT center disc & hub assemblies

1шт.

09971800

MOUNTING PARTS

disc - R.H. & hub assembly

1шт.

09971900

MOUNTING PARTS

disc - L.H. & hub assembly

1шт.

2

33552050

PLOW DISC

BLADE 20"

1шт.

3

NSS

NOT SOLD SEPARAT

WELD spindle arm - center - refer to Ref. 1

1шт.

NSS

NOT SOLD SEPARAT

WELD spindle arm - R.H. - refer to Ref. 1

1шт.

NSS

NOT SOLD SEPARAT

WELD spindle arm - L.H. - refer to Ref. 1

1шт.

4

21932120

SEAL,53.98mm ID x 76.2mm OD x 6.35mm Thk

3.00" O.D.*

1шт.

5

21871630

ROLLER BEARING,41.288 mm ID x 19.76 mm

1.62"

1шт.

6

663558R1

BEARING CUP

2.89" O.D.

1шт.

7

28705006

HUB

disc with cups (Includes: Ref. 6 & 10)

1шт.

8

87541117

RETAINER,Dust Cap

dust cap

1шт.

9

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

10

651817R1

BEARING CUP

2.33" O.D.

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25"

1шт.

12

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

2шт.

13

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

14

NSS

NOT SOLD SEPARAT

PIN cotter, 5/32" x 2" (14700502)

1шт.

15

28490001

HUB CAP

dust

1шт.

16

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

5шт.

17

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

WASHER special, 9/16" I.D. x 3/8" O.D.

5шт.

18

230-4118

LOCK NUT,1/2"-13, GA

5шт.

19

16312230

U-BOLT

BOLT "U" square, 3/4" x 4"

2шт.

20

425-1012

NUT,3/4"-10, G5

4шт.

21

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
