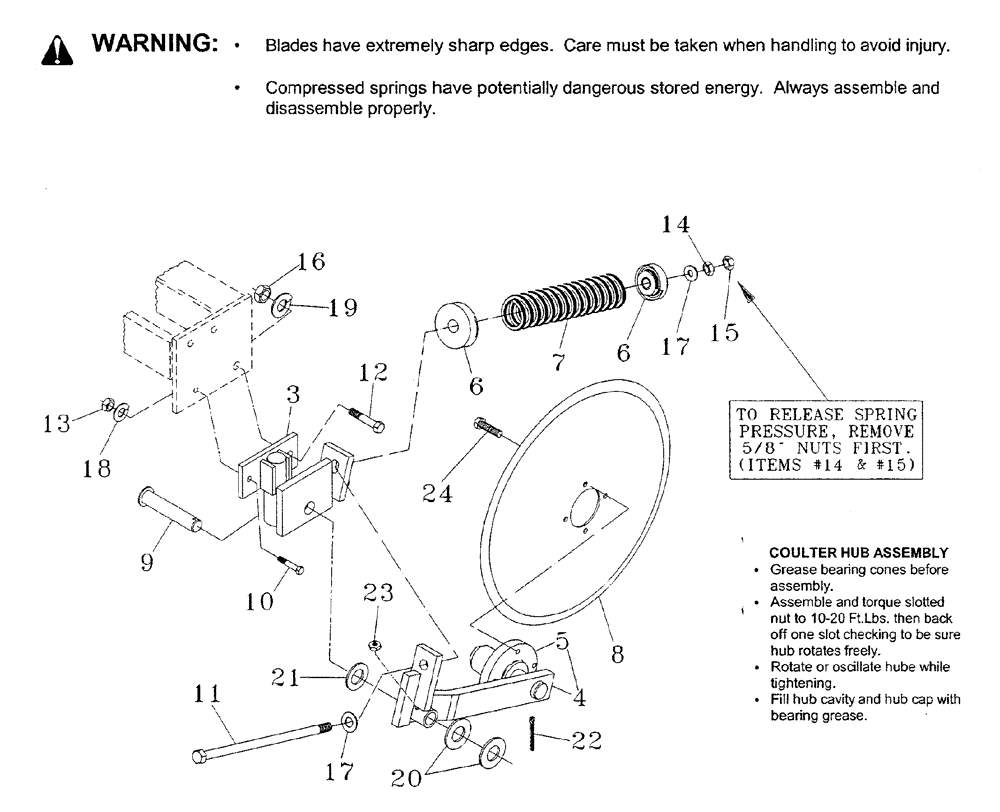

Запчасти Case IH 6750 (010) - SPRING COULTER (09) - CHASSIS

3

09574230

PIVOT ASSY.

coulter

1шт.

4

04642030

POWER ARM

coulter with HUB ASSEMBLY (Ref. 4 & 5)

1шт.

5

NSS

NOT SOLD SEPARAT

HUB ASSEMBLY 4-bolt, (see Figure 12)

1шт.

6

20090050

HOLDER

spring casting

2шт.

7

24156205

COIL SPRING

compression

1шт.

8

33502442

PLOW DISC

BLADE coulter, 24"

1шт.

9

14820570

PIVOT PIN

1шт.

10

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

11

16010540

BOLT

hex, 5/8" x 13-1/2" NC

1шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

1шт.

14

425-1010

NUT,5/8"-11, G5

1шт.

15

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.

16

425-1012

NUT,3/4"-10, G5

1шт.

17

17411012

WASHER

heavy, 5/8"

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

19

492-11075

LOCK WASHER,3/4"

1шт.

20

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

machine, 1-1/4" - 14 GA.

2шт.

21

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

machine, 1-1/4" - 10 GA.

1шт.

22

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

23

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

24

S0000210

BOLT

hex, 1/2" x 1-1/4" NF, GD. 5

4шт.
