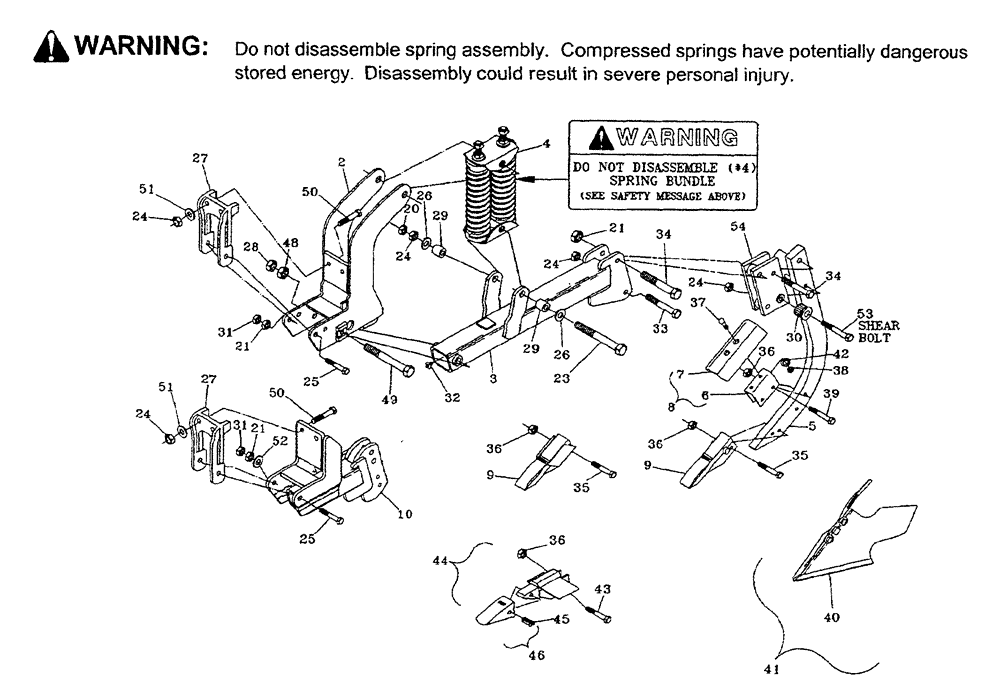

Запчасти Case IH 6750 (009) - PARABOLIC SHANK - MODEL 6750 (09) - CHASSIS

2

09651518

MOUNTING PARTS

S/R-12

1шт.

3

09651420

SHANK

BEAM pivot S/R-12

1шт.

4

09651530

COIL SPRING

ASSEMBLY, S/R-12

1шт.

5

33020040

SHANK

parabolic

1шт.

6

NSS

NOT SOLD SEPARAT

BRACKET cover, parabolic - order Ref. 8

1шт.

7

NSS

NOT SOLD SEPARAT

POINT covering, parabolic 4" - order Ref. 8

1шт.

8

09580060

BRACKET

ATTACHMENT covering, parabolic 4" (Includes: Ref. 6, 7, 36, 37, 38, 39, and 42)

1шт.

9

87460075

POINT RIPPER SHANK

POINT ASSEMBLY parabolic 2"

1шт.

Does Not Include Hardware

1шт.

87460069

POINT RIPPER SHANK

POINT wing,parabolic 5"

1шт.

Does Not Include Hardware

1шт.

87460070

POINT RIPPER SHANK

tiger, Q/P 7"

1шт.

Part of Ref. 13, part number 28263340

1шт.

10

09651505

MOUNTING PARTS

BEAM ASSEMBLY parabolic S/B

1шт.

20

425-1410

JAM NUT,Jam, 5/8"-11, G5

2шт.

21

425-1012

NUT,3/4"-10, G5

2шт.

23

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

2шт.

24

425-1010

NUT,5/8"-11, G5

5шт.

25

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

1шт.

26

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

27

09651540

MOUNTING CLIP

CLAMP

1шт.

28

425-1414

JAM NUT,Jam, 7/8"-9, G5

1шт.

29

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

H.T.

4шт.

30

44006510

BUSHING

serrated, H.T.

2шт.

31

425-1412

JAM NUT,Jam, 3/4"-10, G5

1шт.

32

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

33

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

34

16901215

BOLT

hex, 3/4" x 3-3/4" A325 GD. 5

1шт.

35

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

36

425-108

NUT,1/2" - 13, Gr 5

1шт.

37

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

2шт.

38

425-107

NUT,7/16"-14, G5

2шт.

39

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

40

33310081

LANDSIDE

POINT ASSEMBLY covering, 6"

1шт.

41

09650060

PLOW

ATTACHMENT covering (Includes: Ref. 6, 36, 37, 38, 39, 40 and 42)

1шт.

42

492-11044

LOCK WASHER,7/16"

2шт.

43

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

44

87460158

POINT RIPPER SHANK

POINT ASSEMBLY replaceable tip, 7"

1шт.

Does Not Include Hardware

1шт.

45

NSS

NOT SOLD SEPARAT

PIN flex, 3/8" - refer to Ref. 46

1шт.

46

09907015

TIP

replaceable (Includes: Ref. 45)

1шт.

48

425-1114

NUT,7/8"-14, G5

1шт.

49

16901435

BOLT

hex, 7/8" x 7-3/4" NC, GD. 5

1шт.

50

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

2шт.

51

17411012

WASHER

5/8"

2шт.

52

17413011

WASHER

3/4"

1шт.

53

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

1шт.

54

09651570

HOLDER

HOLDER

1шт.
