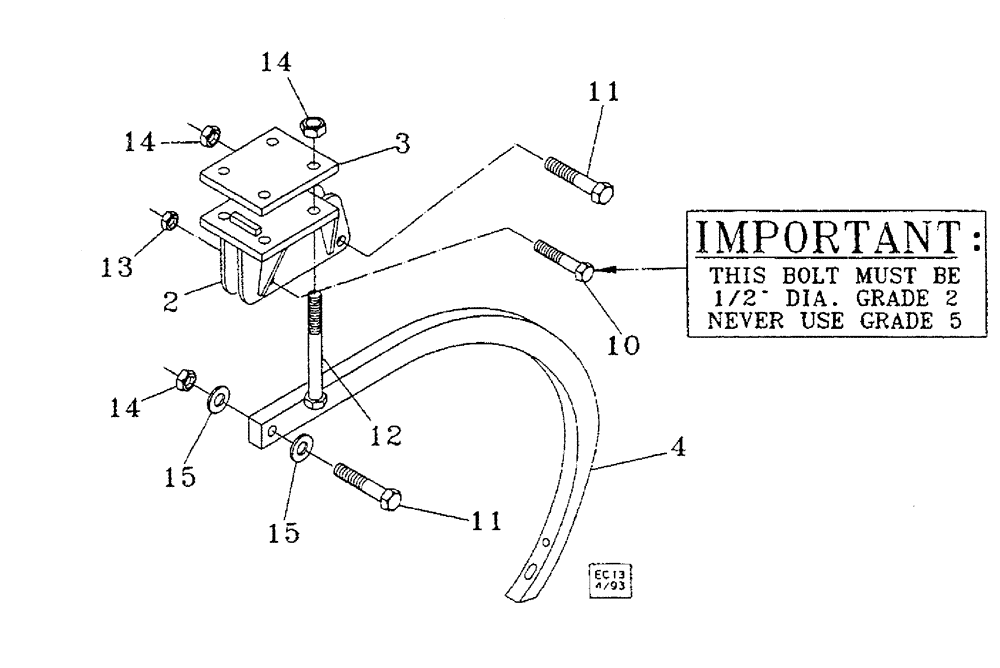

Запчасти Case IH 6750 (007) - SHEAR BOLT SHANK - MODEL 6700 SHANKS (09) - CHASSIS

2

09580900

MOUNTING PARTS

BOLT shear edge

1шт.

3

09575220

PLATE

1шт.

4

33020022

SHANK

edge bent, 1-1/4"

1шт.

10

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

11

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3шт.

12

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

1шт.

14

425-1012

NUT,3/4"-10, G5

7шт.

15

09575270

SPACER

WASHER special, 3/4" thick, 1/2"

2шт.
