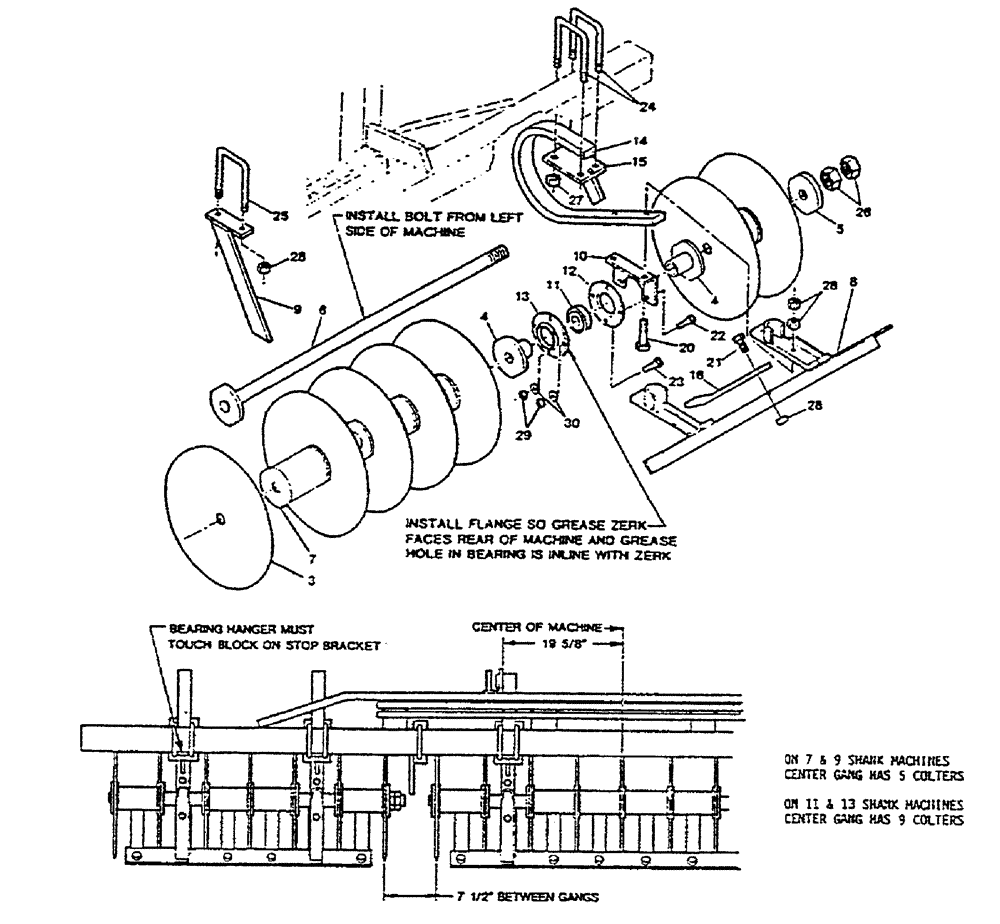

Запчасти Case IH 6750 (005) - GANG COULTERS (09) - CHASSIS

3

33502045

PLOW DISC

BLADE coulter, 20"

1шт.

4

09570200

SPACER

bearing

4шт.

5

09570210

WASHER

1шт.

6

16902422

PLOW BOLT

disc, 1-1/2" x 33"

1шт.

16902423

PLOW BOLT

disc, 1-1/2" x 48"

1шт.

16902424

PLOW BOLT

disc, 1-1/2" x 63"

1шт.

7

09571720

SPACER

coulter

1шт.

8

09571710

MOUNTING PARTS

scraper, 5-gang

1шт.

09571810

MOUNTING PARTS

scraper, 7-gang

1шт.

09571910

MOUNTING PARTS

scraper, 9-gang

1шт.

9

09575300

SCOOP

SCRAPER single

1шт.

10

09571730

BRACKET

bearing

2шт.

11

T57851

BALL BEARING,38.1mm ID x 85mm OD x 30.18mm W

ball, 1-1/2" diameter

2шт.

12

21892400

FLANGED BEARING

bearing

2шт.

13

21892401

FLANGED BEARING

bearing with zerk

2шт.

14

33020010

HANGER

bearing

2шт.

15

09575500

PLATE

BRACKET stop

2шт.

16

09570400

SCOOP

SCRAPER

1шт.

20

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

4шт.

21

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

23

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

24

16312270

U-BOLT

BOLT "U" 3/4" NC x 4" x 6-3/4"

4шт.

25

16310011

U-BOLT

BOLT "U" 5/8" NC x 4" x 5-1/2"

1шт.

26

425-1424

JAM NUT,Jam, 1 1/2"-6, G5

2шт.

27

425-1012

NUT,3/4"-10, G5

8шт.

28

425-1010

NUT,5/8"-11, G5

1шт.

29

425-108

NUT,1/2" - 13, Gr 5

8шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

8шт.
