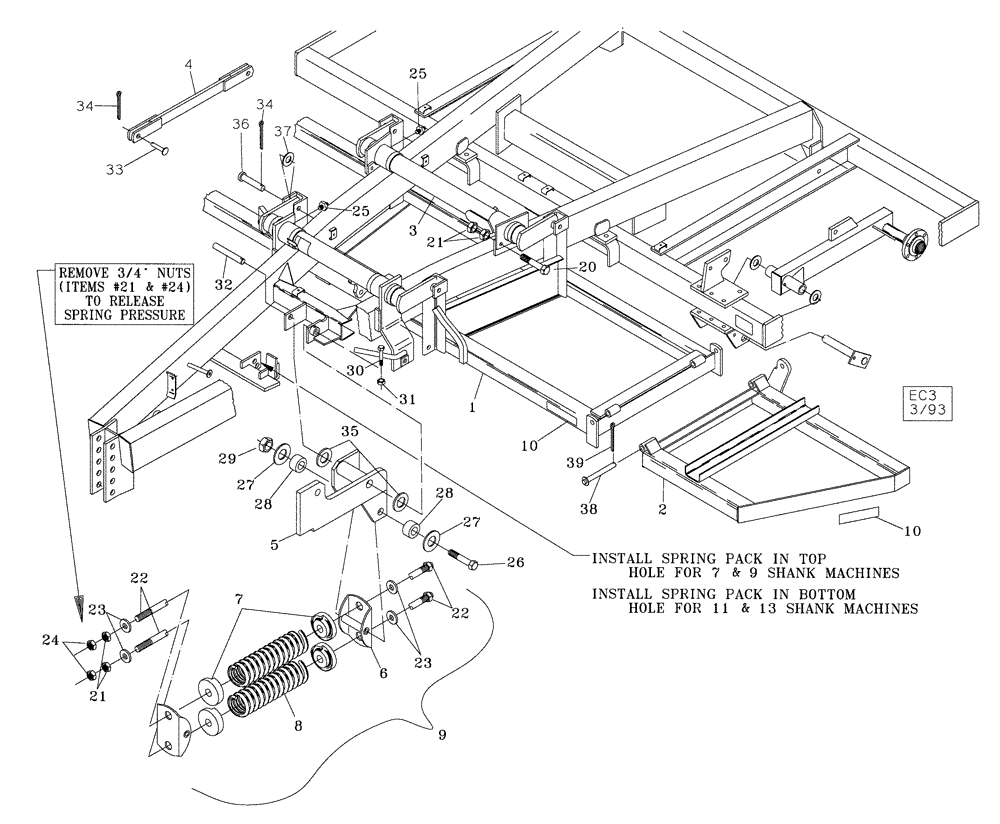

Запчасти Case IH 6750 (39.100.02) - DISC ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

09650400W

FRAME

Disc, 9 Shank

1шт.

1

09970200W

FRAME

Disc, 11 & 13 Shank

1шт.

2

09576800W

FRAME ASSY

Disc, Lh, 11 Shank

1шт.

2

09576820W

FRAME ASSY

Disc, Rh, 11 Shank

1шт.

2

09576850W

FRAME ASSY

Disc, Lh, 13 Shank

1шт.

2

09576870W

FRAME ASSY

Disc, Rh, 13 Shank

1шт.

3

09576570W

FRAMEWORK

Rear Lift

1шт.

4

84401370

LINKAGE

Lift

1шт.

5

09651000

LINKAGE

Cylinder

1шт.

6

09581510

PIVOT ASSY.

Spring

2шт.

7

20090091

HOLDER

Spring Casting

4шт.

8

24162501

COIL SPRING

Compression

2шт.

9

09651600

SPRING BOX

Disc Relief Assembly

1шт.

10

311864A1

REFLECTOR

Yellow, 11 & 13 Shank

4шт.

10

311864A1

REFLECTOR

Yellow, 9 Shank

2шт.

20

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

21

425-1012

NUT,3/4"-10, G5

10шт.

22

16512692

THREADED ROD

3/4 x 20-1/2, NC

2шт.

23

17413011

WASHER

1/4, Thick

4шт.

24

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

25

219-86

LUBE NIPPLE,1/8" NPTF

Self Tapping

4шт.

26

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8 x 7-1/4, Hex, gd 5, ZP

2шт.

27

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard, ZP

4шт.

28

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Hardened

4шт.

29

231-42410

LOCK NUT,5/8"-11, GB

4шт.

30

413-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

1шт.

31

231-4247

LOCK NUT,7/16"-14, GB

Hex

1шт.

32

14892066

PIN

1-1/4 x 8-1/2

1шт.

33

14816201

SMALL PIN

1 x 2-3/32

2шт.

34

432-1624

COTTER PIN,1/4" x 1 1/2"

6шт.

35

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4, Machined

1шт.

36

14816382

SMALL PIN

1 x 3-3/4

4шт.

37

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

1, Machined

4шт.

38

14816686

PIVOT PIN

Wing, 11 & 13 Shank

4шт.

39

432-1632

COTTER PIN,1/4" x 2"

11 & 13 Shank

4шт.
