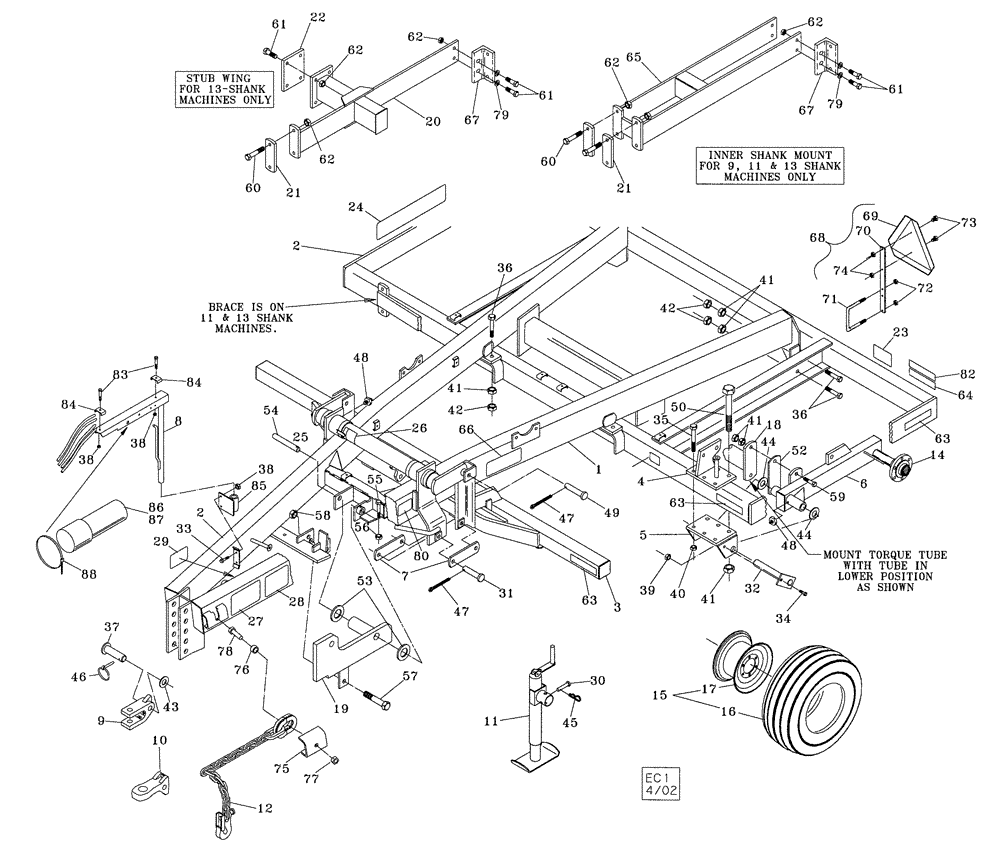

Запчасти Case IH 6750 (39.100.01) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

09576560W

FRAME

Pull

1шт.

2

09576200W

FRAME

Main, 7 & 9 Shank

1шт.

2

09576250W

FRAME

Main, 11 & 13 Shank

1шт.

3

09573100W

FRAME

Coulter, 7 & 9 Shank

1шт.

3

09573200W

FRAME

Gang Coulter, 7 & 9 Shank

1шт.

3

09573300W

FRAME

Coulter, 11 & 13 Shank

1шт.

3

09573400W

FRAME

Gang, 11 & 13 Shank

1шт.

4

09576910

MOUNTING PARTS

Cylinder, Rh

1шт.

4

09576930

MOUNTING PARTS

Cylinder, Lh

1шт.

5

09576175

PIVOT

Wheel

2шт.

6

09650350

AXLE

Spindle Arm, Rh, With Hub, 783

1шт.

6

09650360

AXLE

Spindle Arm, Lh, With Hub, 783

1шт.

7

09964000

LOWER LINK

4шт.

8

05302150

STAND

Swinging Hose

1шт.

9

20092051

CLEVIS

Double

1шт.

10

20092071

ADJUSTABLE CLEVIS

Single

1шт.

11

32230000

JACK

5000 lb

1шт.

12

87393082

CHAIN

20,200, Safety

1шт.

14

28178300

HUB ASSY.

783, 6- Bolt

2шт.

15

10010260

LAND WHEEL

12.5L x 15, 10 Ply Tire And Wheel, Tubeless, Silver

2шт.

15

10010264

LAND WHEEL

12.5L x 15, 10 Ply Tire And Wheel, Tube, Silver

2шт.

15

10010265

LAND WHEEL

12.5L x 15, 12 Ply Tire And Wheel, Tube, Silver

2шт.

16

NSS

NOT SOLD SEPARAT

12.5L x 15, 10-Ply Tire, 11012150

2шт.

16

NSS

NOT SOLD SEPARAT

12.5L x 15, 12-Ply Tire, 11012152, 11 & 13 Parabolic Only

2шт.

17

10110254

WHEEL ASSY.

10 x 15, 6-Hole, With Guard, Silver

2шт.

18

09576700

TUBE,79.38" Length

Torque Tube, 79-3/8, 7 Shank

1шт.

18

09576720

TUBE,101.88" Length

Torque Tube, 101-7/8, 9 & 13 Shank

1шт.

18

87456675

TUBE,135 mm L

Torque Tube, 132-3/8, 11 Shank

1шт.

19

09576760

LINKAGE

Cylinder

1шт.

20

09576880

FRAME, HITCH

Stub Wing, 13 Shank Only

2шт.

21

09576610

LINKAGE

Flat

4шт.

22

09100131

WEAR PLATE

2шт.

23

192849A2

DECAL

Case IH, 6700 & 6750

1шт.

Used On 2006 And Prior Units

1шт.

23

87595770

DECAL

Case IH

1шт.

Used On 2007 And After Units

1шт.

23

87594280

DECAL

Case IH

1шт.

Used On 2008 And After Units

1шт.

23

87653276

DECAL

Case IH

1шт.

Used On 2009 And After Units

1шт.

24

18535018

DECAL

Case IH, 6700, Lh

1шт.

24

18535017

DECAL

Case IH, 6700, Rh

1шт.

25

18534192

DECAL

Turning

1шт.

26

18534189

DECAL

Depth Indicator

1шт.

27

18534347

WARNING DECAL

Warning, Towing Hazard

1шт.

28

18534228

DECAL

Caution

1шт.

29

18534107

DECAL

Patent

1шт.

30

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 Dia. x 3-1/8, Clevis

1шт.

31

14816180

HEADED PIN

1 Dia. x 3, Clevis

4шт.

32

09576180

HITCH PIN

2шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

34

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

35

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

6шт.

36

413-1444

BOLT,Hex, 7/8" - 9 x 2-3/4", Gr 5

8шт.

37

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1-1/4 Dia. x 5-1/2

1шт.

38

425-106

NUT,3/8"-16, Cl 5

2шт.

39

425-1010

NUT,5/8"-11, G5

2шт.

40

425-1012

NUT,3/4"-10, G5

6шт.

41

425-1014

NUT,7/8"-9, G5

22шт.

42

425-1414

JAM NUT,Jam, 7/8"-9, G5

8шт.

43

17421021

WASHER

1-1/4, Heavy

1шт.

44

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8 x 14 ga

4шт.

45

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

1шт.

46

A30338

PIN

1/4 Dia. x 1-3/4, Klik

1шт.

47

432-1624

COTTER PIN,1/4" x 1 1/2"

6шт.

48

219-86

LUBE NIPPLE,1/8" NPTF

Straight

4шт.

49

14816382

SMALL PIN

1 x 3-3/4, Clevis

2шт.

50

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

6шт.

52

09650333

SHIM,.134" Thk

1шт.

53

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4, Machined

1шт.

54

14892066

PIN

1-1/4 x 8-1/2

1шт.

55

413-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

1шт.

56

231-4247

LOCK NUT,7/16"-14, GB

Hex

1шт.

57

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

1шт.

58

425-1016

NUT,1"-8, G5

1шт.

59

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

4шт.

60

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

24шт.

61

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

20шт.

62

425-1012

NUT,3/4"-10, G5

28шт.

63

311864A1

REFLECTOR

Amber

6шт.

64

311863A1

REFLECTOR

Red

2шт.

65

09576890

SHANK

Inner, Mount, 9, 11, & 13 Shank Only

2шт.

66

18534333

DANGER DECAL

Danger Sign, Pinch

1шт.

67

09576875

ANGLE

6шт.

68

18584000

WARNING SIGN

SMV Kit, Inc. 69 - 74

1шт.

69

311860A1

EMBLEM

SMV

1шт.

70

06000099

BRACE

SMV

1шт.

71

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8 x 4 x 6

1шт.

72

231-4246

LOCK NUT,3/8"-16, GB

2шт.

73

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

74

86992211

NUT

1/4, NC, Hex

2шт.

75

04681210

BRACKET

1шт.

76

04681211

BUSHING

1шт.

77

86992219

LOCK NUT

1, NC

1шт.

78

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

1шт.

79

17413011

WASHER

3/4, Heavy

12шт.

80

18534277

DECAL

Warning Sign, Spring Compression

1шт.

82

311865A1

REFLECTOR

Fluorescent

2шт.

83

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

83

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

84

06200125

HOSE CLAMP

2шт.

85

09983458

BAR ASSY.

Hose Boom Mount

1шт.

86

30026030

TUBE

Manual

1шт.

88

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.
