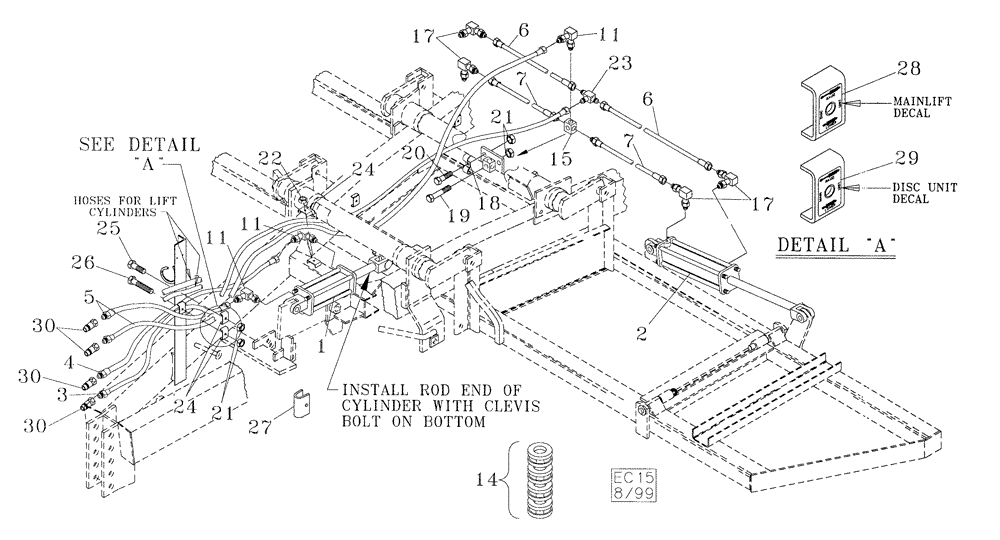

Запчасти Case IH 6750 (35.100.02) - HYDRAULICS WITH DISC ATTACHMENT (08) - HYDRAULICS

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8, 3000 PSI

1шт.

2

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2 x 16, 3000 PSI, 11 & 13 Shank

2шт.

3

25610712

HYDRAULIC HOSE

3/8 x 110

1шт.

4

25610713

HYDRAULIC HOSE

3/8 x 118

1шт.

5

25610718

HYDRAULIC HOSE

3/8 x 178, 11 & 13 Shank

2шт.

6

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

11 & 13 Shank

2шт.

7

25600614

HYDRAULIC HOSE,0.38" ID x 36.00", SAE 100R17

11 & 13 Shank

2шт.

Also Order 2 Of Part Number 218-444

1шт.

10

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3/4 (2) JICM x 3/4 SAEM

1шт.

11

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

12

25707526

FITTING

3/4 SAEM x 7/8 SAEM

1шт.

14

25800010

CYLINDER

Stroke Kit, 1-1/4

1шт.

15

25401255

FLOW DIVIDER

Black, 11 & 13 Shank

1шт.

16

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

3/4 JICM - 1/2 NPTM, 11 & 13 Shank

1шт.

17

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

9/16 SAEM x 3/4 JICM, 90 Degrees, 11 & 13 Shank

4шт.

18

22530601

HOSE CLAMP

Double, 11 & 13 Shank

2шт.

19

424-632

BOLT,Hex, 3/8" - 16 x 2", Gr 2

11 & 13 Shank

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

11 & 13 Shank

2шт.

21

425-106

NUT,3/8"-16, Cl 5

11 & 13 Shank

5шт.

22

425-105

NUT,5/16"-18, G5

11 & 13 Shank

1шт.

23

218-594

TEE,3/4"-16, 37 Degree

11 & 13 Shank

1шт.

24

06200125

HOSE CLAMP

Double

2шт.

25

424-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 2

2шт.

26

424-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 2

1шт.

27

09650207

STAY

Cylinder Transport, Disc Coulter

1шт.

28

18534237

DECAL

Main Lift

1шт.

29

18534239

DECAL

Disc

1шт.

30

25705041

COUPLING

Male, ISO-3/4 SAEF, Hydraulic

4шт.
