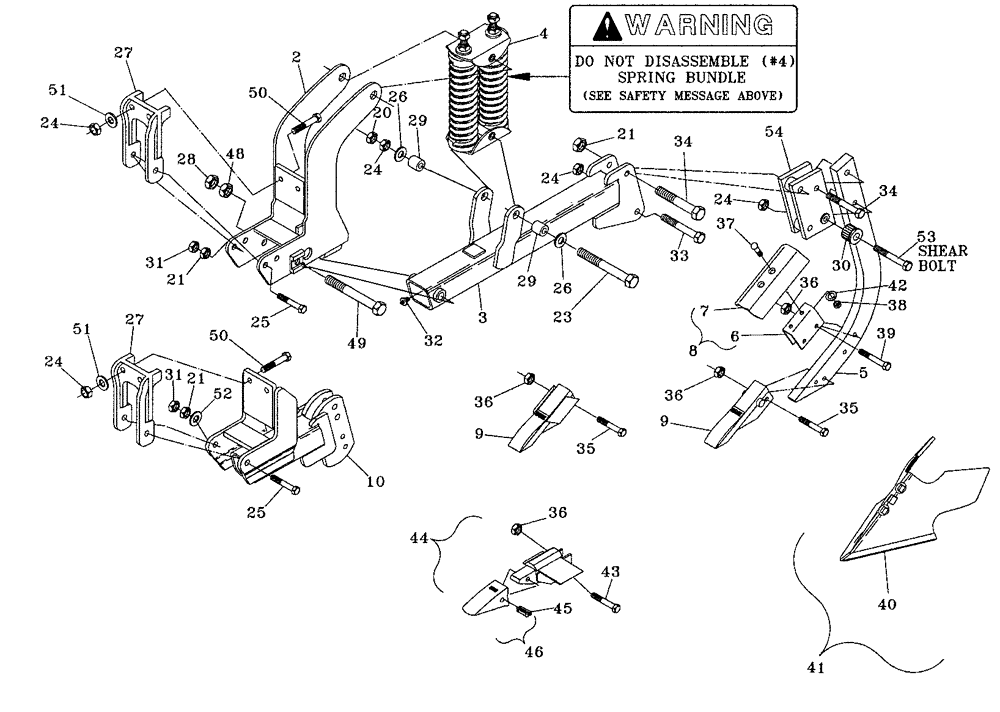

Запчасти Case IH 6750 (75.200.05) - PARABOLIC SHANK (09) - CHASSIS/ATTACHMENTS

1

87442086

SHANK

Quad S/R-12, Less Shank

1шт.

2

09651518

MOUNTING PARTS

S/R-12

1шт.

3

09651520

BEAM ASSY.

S/R-12, Pivot

1шт.

4

87443458

CASTING

S/R-12

1шт.

5

33020040

SHANK

Parabolic

1шт.

6

09580750

HITCH BRACKET

Parabolic Cover

1шт.

7

33310076

LANDSIDE

Parabolic, 4, With Hardware

1шт.

8

09580060

BRACKET

Parabolic, 4, Inc. 6 - 7. 36 - 39 & 42

1шт.

9

87460075

POINT RIPPER SHANK

2, Parabolic

1шт.

Does Not Include Hardware

1шт.

9

87460069

POINT RIPPER SHANK

5, Tiger, With Hardware

1шт.

Does Not Include Hardware

1шт.

9

87460070

POINT RIPPER SHANK

7, Tiger, With Hardware

1шт.

Does Not Include Hardware

1шт.

10

09651505

MOUNTING PARTS

Shear Bolt

1шт.

20

425-1410

JAM NUT,Jam, 5/8"-11, G5

Hex

2шт.

21

425-1012

NUT,3/4"-10, G5

2шт.

23

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8 x 7-1/2, NC, Hex, gd 5

2шт.

24

425-1010

NUT,5/8"-11, G5

5шт.

25

16901235

CAPSCREW,Hex, 3/4" - 10 x 7 1/2", Gr 5

3/4 x 7-1/2, NC, Hex, gd 5

1шт.

26

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard, ZP

4шт.

27

09651540

MOUNTING CLIP

1шт.

28

425-1414

JAM NUT,Jam, 7/8"-9, G5

1шт.

29

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Heat Treated

4шт.

30

44006510

BUSHING

Serrated, Heat Treated

2шт.

31

425-1412

JAM NUT,Jam, 3/4"-10, G5

Hex

1шт.

32

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

33

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

34

16901215

BOLT

3/4 x 3-3/4, A325, Hex, gd 5

1шт.

35

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

36

425-108

NUT,1/2" - 13, Gr 5

1шт.

37

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

2шт.

38

425-107

NUT,7/16"-14, G5

2шт.

39

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

40

33310081

LANDSIDE

6, Covering

1шт.

41

09650060

PLOW

6, Covering, Inc. 6, 36 - 40, & 42

1шт.

42

492-11044

LOCK WASHER,7/16"

2шт.

43

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

44

87460158

POINT RIPPER SHANK

7, Replacable Tip, Inc. 36, 43, & 45 - 46

1шт.

Does Not Include Hardware

1шт.

45

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8, Flex

1шт.

46

87412311

TIP

Replacable, Inc. 45

1шт.

48

425-1014

NUT,7/8"-9, G5

1шт.

49

16901435

BOLT

7/8 x 7-3/4, NC, Hex, gd 5

1шт.

50

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

2шт.

51

495-81028

WASHER,21/32" x 1 1/2" x .240"

2шт.

52

17413011

WASHER

3/4

1шт.

53

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

1шт.

54

09651570

HOLDER

Holder

1шт.
