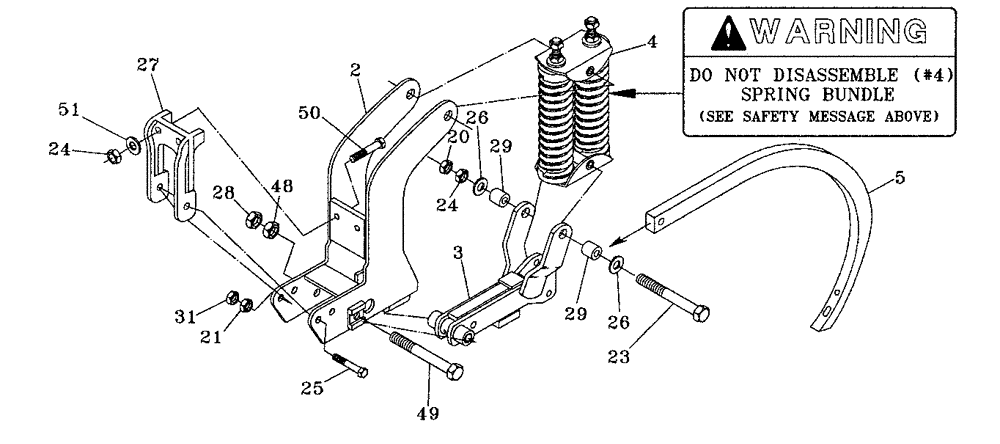

Запчасти Case IH 6750 (75.200.02) - EDGE BENT SHANK (09) - CHASSIS/ATTACHMENTS

2

09651518

MOUNTING PARTS

S/R-12

1шт.

3

09651455

SHANK

S/R-12, Edge Bent, Pivot

1шт.

4

09651530

COIL SPRING

S/R-12, Assembly

1шт.

5

33020022

SHANK

1-1/4 x 2, Edge Bent

1шт.

20

425-1410

JAM NUT,Jam, 5/8"-11, G5

Hex

2шт.

21

425-1012

NUT,3/4"-10, G5

2шт.

23

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8 x 7-1/2, NC, Hex, gd 5

2шт.

24

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Hex

5шт.

25

16901235

CAPSCREW,Hex, 3/4" - 10 x 7 1/2", Gr 5

3/4 x 7-1/2, NC, Hex, gd 5

1шт.

26

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard, ZP

4шт.

27

09651540

MOUNTING CLIP

1шт.

28

425-1414

JAM NUT,Jam, 7/8"-9, G5

1шт.

29

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Heat Treated

4шт.

31

425-1412

JAM NUT,Jam, 3/4"-10, G5

1шт.

48

425-1014

NUT,7/8"-9, G5

1шт.

49

16901435

BOLT

7/8 x 7-3/4, NC, Hex, gd 5

1шт.

50

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

2шт.

51

495-81028

WASHER,21/32" x 1 1/2" x .240"

2шт.
