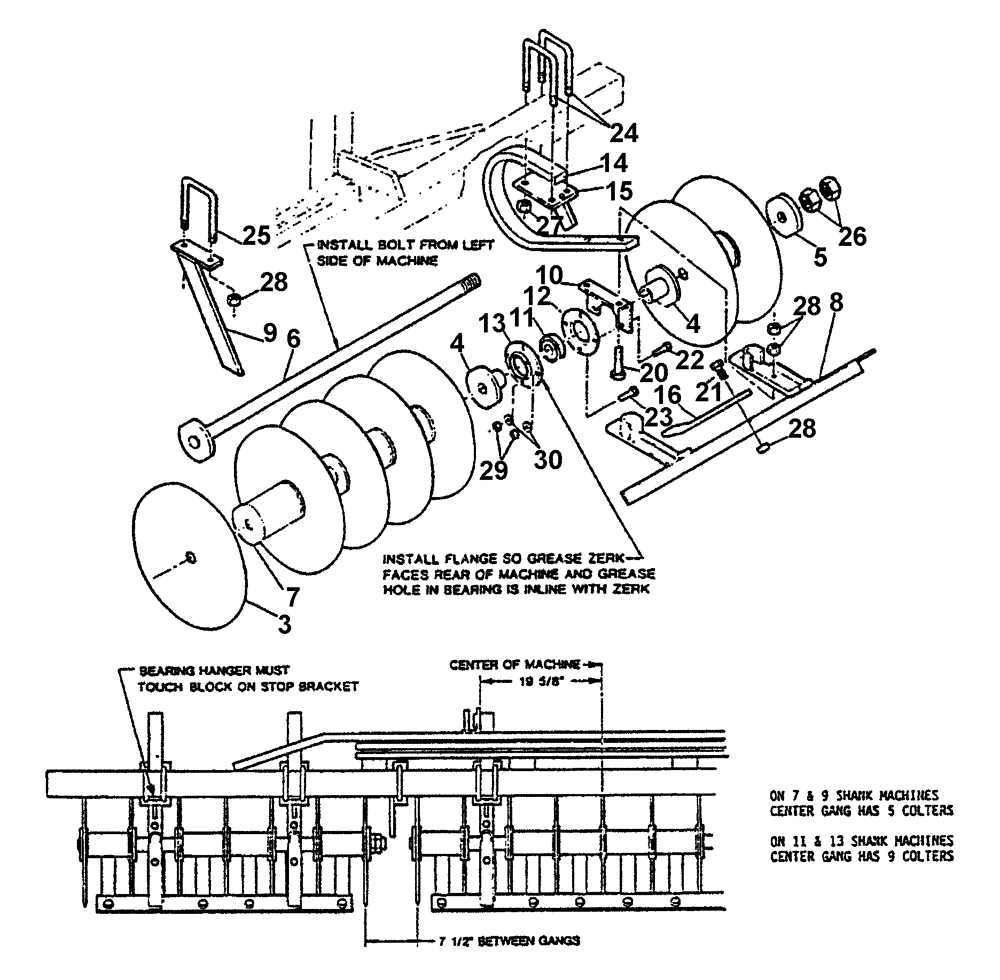

Запчасти Case IH 6750 (75.200.01) - GANG COULTERS (09) - CHASSIS/ATTACHMENTS

3

28597R1

DISC

COULTER FLAT 20"

1шт.

4

09570200

SPACER

Bearing

4шт.

5

09570210

WASHER

1шт.

6

16902422

PLOW BOLT

1-1/2 x 33

1шт.

6

16902423

PLOW BOLT

1-1/2 x 48

1шт.

6

16902424

PLOW BOLT

1-1/2 x 63

1шт.

7

09571720

SPACER

Coutler

1шт.

8

09571710

MOUNTING PARTS

5 Gang, Scraper

1шт.

8

09571810

MOUNTING PARTS

7 Gang, Scraper

1шт.

8

09571910

MOUNTING PARTS

9 Gang, Scraper

1шт.

9

09575300

SCOOP

Single

1шт.

10

09571730

BRACKET

Bearing

2шт.

11

21842400

BEARING, BALL,38.73mm ID x 85mm OD x 30.16mm W

1-1/2, Dia.

2шт.

12

21892400

FLANGED BEARING

Bearing

2шт.

13

21892401

FLANGED BEARING

Bearing, With Zerk

2шт.

14

33020010

HANGER

Bearing

2шт.

15

09575500

PLATE

Stop

2шт.

16

09570400

SCOOP

1шт.

20

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4, NC, Hex, gd 5

4шт.

21

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

23

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

24

87427187

U-BOLT

BOLT "U" 3/4 NC x 4 x 6-3/4

4шт.

25

87427161

U-BOLT

BOLT "U" 5/8 NC x 4 x 5-1/2

1шт.

26

25-1424

JAM NUT,Jam, 1 1/2"-6, G5

2шт.

27

425-1012

NUT,3/4"-10, G5

8шт.

28

425-1010

NUT,5/8"-11, G5

1шт.

29

425-108

NUT,1/2" - 13, Gr 5

8шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

8шт.
