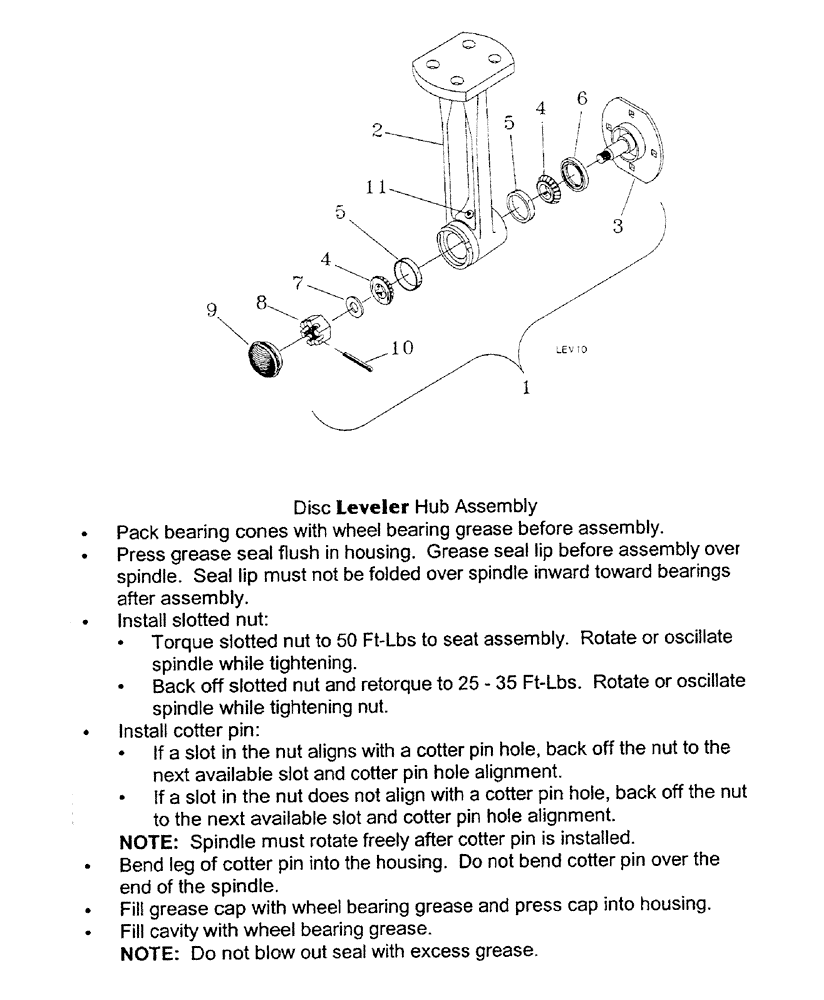

Запчасти Case IH 6700 (003) - HUB AND SPINDLE

1

09103101

HUB

SPINDLE MOUNT ASSEMBLY (includes: 2-11)

1шт.

2

09193150

HUB ASSY.

DISC spindle casting w/brg. cups

1шт.

3

09103120

DISC

spindle

1шт.

4

463911R91

ROLLER BEARING,1" ID x 0.58"

bore, 1.00"

2шт.

5

572564R1

BEARING CUP

1.980" O.D.

2шт.

6

21931375

SEAL

bore, 1.375"

1шт.

7

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

flat, H.T., 3/4"

1шт.

8

25-1312

SLOTTED NUT,3/4"-16, G5

1шт.

9

28420021

CAP

grease

1шт.

10

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
