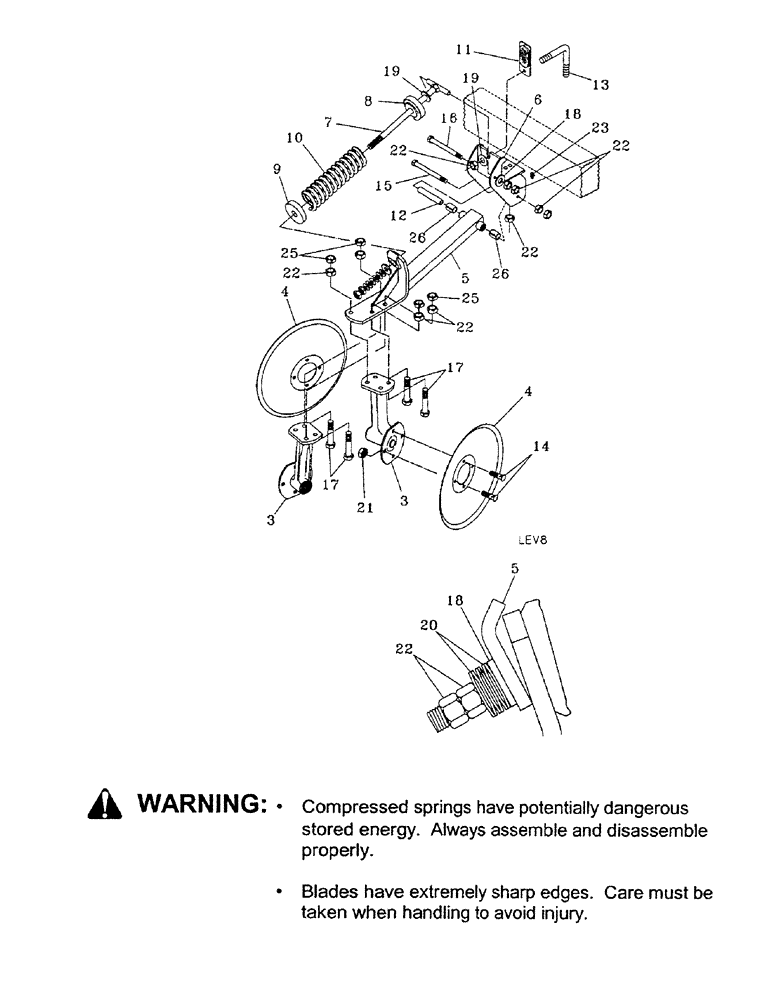

Запчасти Case IH 6700 (002) - DISC LEVELER

3

09103101

HUB

SPINDLE MOUNT ASSEMBLY (see hub & spindle on Figure 3)

1шт.

4

33551850

PLOW DISC

blade

1шт.

5

09102120

ARM/LIFTING DEVICE

leveler pivot

1шт.

6

09102110

PLOW DISC

leveler mount

1шт.

7

09102140

EYEBOLT

BOLT, EYE spring pivot

1шт.

8

20090100

HOLDER

spring casting

1шт.

9

20090101

HOLDER

spring casting with bushing

1шт.

10

24143891

COIL SPRING

compression 3-3/4" O.D.

1шт.

11

09102170

REFLECTOR

rear

1шт.

12

51200157

BUSHING,16.66mm ID x 22.05mm OD x 129.39mm L

H.T.

1шт.

13

16510150

PLOW BOLT

LG. L, 5/8" diameter x 5 5/16"

1шт.

14

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

15

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

1шт.

16

16901029

BOLT

hex, NC, A325 Grade, 5/8" x 7-1/4"

1шт.

17

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

18

17411012

WASHER

THK., 5/8" I.D. x 1/4"

1шт.

19

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

20

17511000

BELLEVILLE WASHER

1 1/16" 2.P.

6шт.

21

425-108

NUT,1/2" - 13, Gr 5

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1/8"

1шт.

24

18534273

DECAL

patent no (not shown)

1шт.

25

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.

26

51200158

BUSHING,22.72mm ID x 29.08mm OD x 38.1mm L

connex, 7/8" I.D.

1шт.
