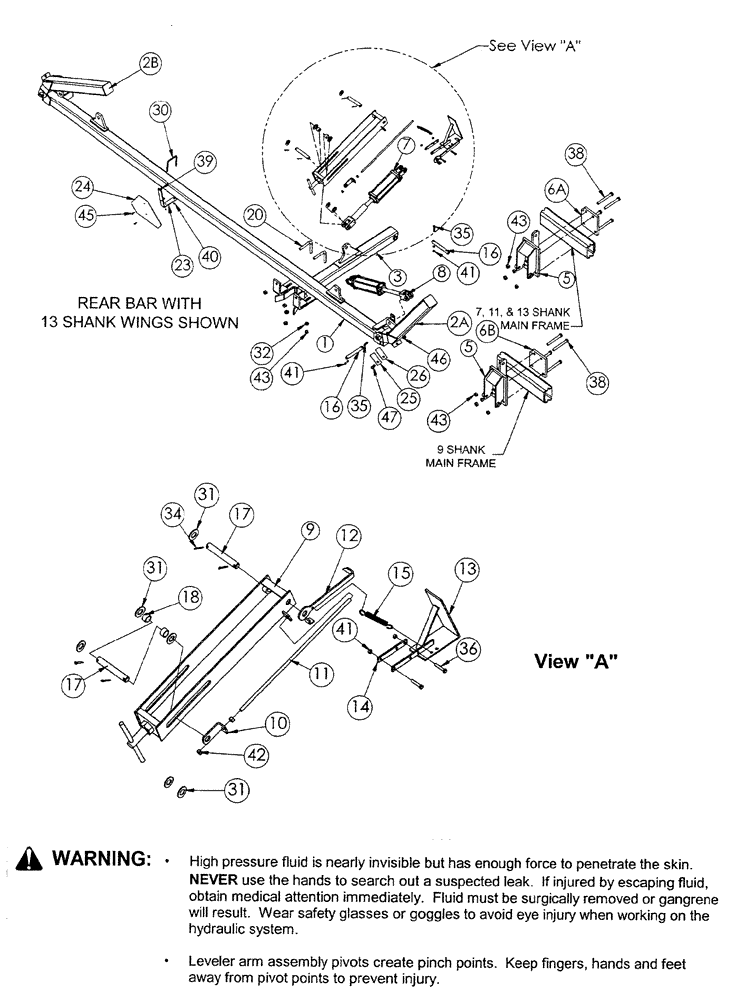

Запчасти Case IH 6700 (001) - HYDRAULIC LEVELER BAR

1

09100700

BAR ASSY.

rear leveler - 189" long - 11 shank unit

1шт.

09100500

BAR ASSY.

rear leveler - 129-1/2" long - 7 shank unit

1шт.

87355968

HYD TUBE

rear leveler -19-1/2" long - 9 shank unit

1шт.

09102540

BAR ASSY.

hydraulic fold leveler - 13 shank unit

1шт.

2a

09102620

BAR ASSY.

WING hydraulic leveler R.H. - used with 09102540 hydraulic fold bar only

2шт.

2b

09102630

BAR ASSY.

WING hydraulic leveler L.H. - used with 09102540 hydraulic fold bar only

1шт.

3

09102985

ARM ASSY.

pivot weld

2шт.

5

09102970

SUPPORT ASSY.

ARM for 9 shank unit

2шт.

6a

09102942

WEAR PLATE

leveler mount for 7, 11 , & 13 shank unit

2шт.

6b

09102938

WEAR PLATE

BRACKET leveler mounting 9 shank unit

2шт.

7

25330083

CYLINDER ASSY.

3" x 8" main lift hyd. 3,000 p.s.i. (see Figure 5)

2шт.

8

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3" x 10" wing lift hyd. 3,000 p.s.i. (see Figure 5)

2шт.

8

25330101R

REMAN-HYD CYLINDER

6700 COULTER CHISEL, 6750 PARABOLIC CHISEL, Both HYDRAULIC DISC LEVER, wing lift hyd. 3,000 p.s.i.

2шт.

8

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

9

09102930

CYLINDER

stop

2шт.

10

09102939

BRACKET

FLAT formed

1шт.

11

09102956

ROD

1шт.

12

09102943

ARM

depth gauge

1шт.

13

09102941

GAUGE ASSY.

depth indicator

1шт.

14

09102957

STRAP

strap

2шт.

15

24312000

COIL SPRING

extension

2шт.

16

14891665

HITCH PIN

1" diameter

4шт.

17

14891663

HITCH PIN

1" diameter x 6" long

4шт.

18

09102904

SPACER

4шт.

20

16512470

SPECIAL BOLT

L, 3/4" x 5.69"

4шт.

23

09102965

BRACKET

SMV

1шт.

24

20213C2

EMBLEM SMV

1шт.

25

09661455

SHIM

16 ga.

1шт.

26

09661456

SHIM

11 ga.

1шт.

30

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8" x 4" x 4"

1шт.

31

495-11106

WASHER,1", SAE

12шт.

32

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4" I.D., H.T.

4шт.

34

432-1624

COTTER PIN,1/4" x 1 1/2"

8шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

36

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

37

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

8шт.

38

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

8шт.

39

232-4114

LOCK NUT,1/4"-20, GC

2шт.

40

232-4118

NUT,1/2"-13, GC

hex lock, NC, 3/8"

2шт.

41

425-106

NUT,3/8"-16, Cl 5

12шт.

42

425-108

NUT,1/2" - 13, Gr 5

4шт.

43

425-1012

NUT,3/4"-10, G5

16шт.

45

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

46

232-41112

NUT,3/4"-10, GC

lock, NC, 5/8"

2шт.

47

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.
