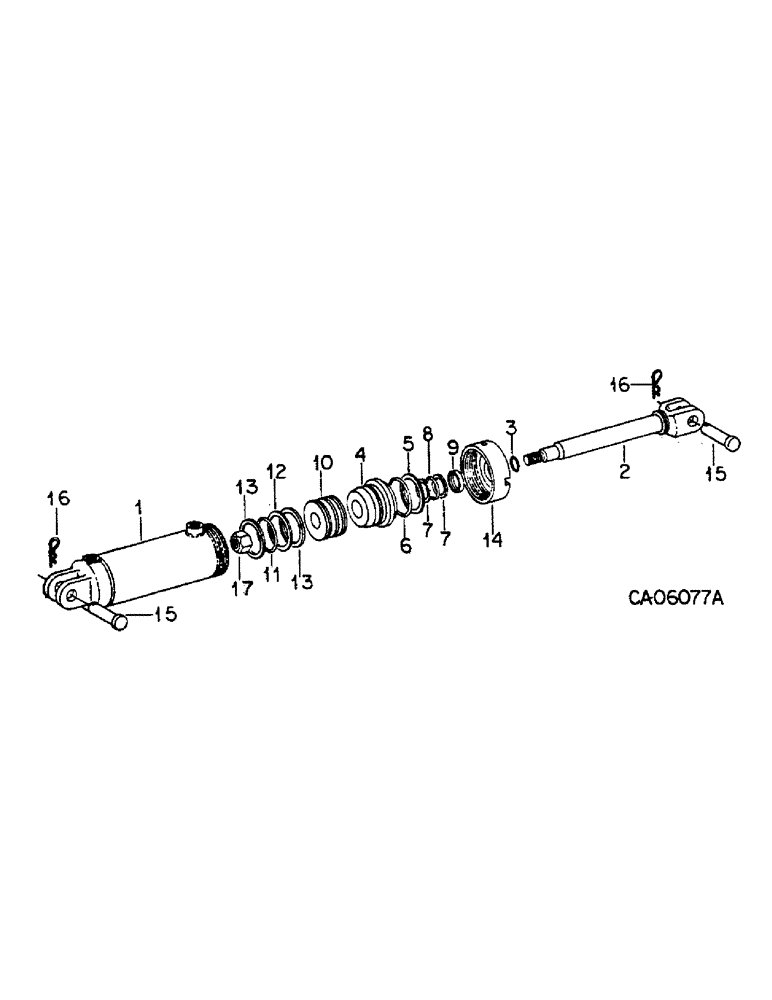

Запчасти Case IH 645 (L-10) - HYDRAULIC CYLINDERS, HYDRAULIC CYLINDER, IH, 4 X 8 DOUBLE ACTING

388688R95

CYLINDER

ASSY, 4 x 8 DA hyd

1шт.

1343711C1R

REMAN-HYD CYLINDER

645, 5000, Both INTERNATIONAL HARVESTER VIBRA CHISEL, ASSY, DA hyd, 4 X 8 DOUBLE ACTING, Reman for New PN 388688R95

1шт.

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

1

BODY, cylinder (NSS)

1шт.

2

388691R31

ROD

ASSY, piston

1шт.

3

O-RING, 1.00 x 1.250 x .125, note (NSS)

1шт.

4

388693R1

END

HEAD, cylinder front

1шт.

5

WASHER, front head back-up, note (NSS)

1шт.

6

O-RING, 3-5/8 x 4 x 3/16, note (NSS)

1шт.

7

WASHER, piston rod back-up, note (NSS)

2шт.

8

RING, quad-piston rod, note (NSS)

1шт.

9

WIPER, piston rod, note (NSS)

1шт.

10

388694R1

PISTON ASSY.

PISTON, hydraulic cylinder

1шт.

11

O-RING, 3-1/2 x 3-11/16 x 3/32, note (NSS)

1шт.

12

RING, piston seal, note (NSS)

1шт.

13

RING, piston bearing, note (NSS)

2шт.

14

381111R1

RING

retaining

1шт.

15

64560C1

HEADED PIN

PIN, pivot headed

2шт.

16

520175R1

CLIP

PIN, quick attachable cot

2шт.

17

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8-NF PHC P/T lock type 8

1шт.

388983R92

KIT

PACKAGE, hyd cyl seal, consists of ref nos. 3, 5 thru 9, 11 thru 13

1шт.
