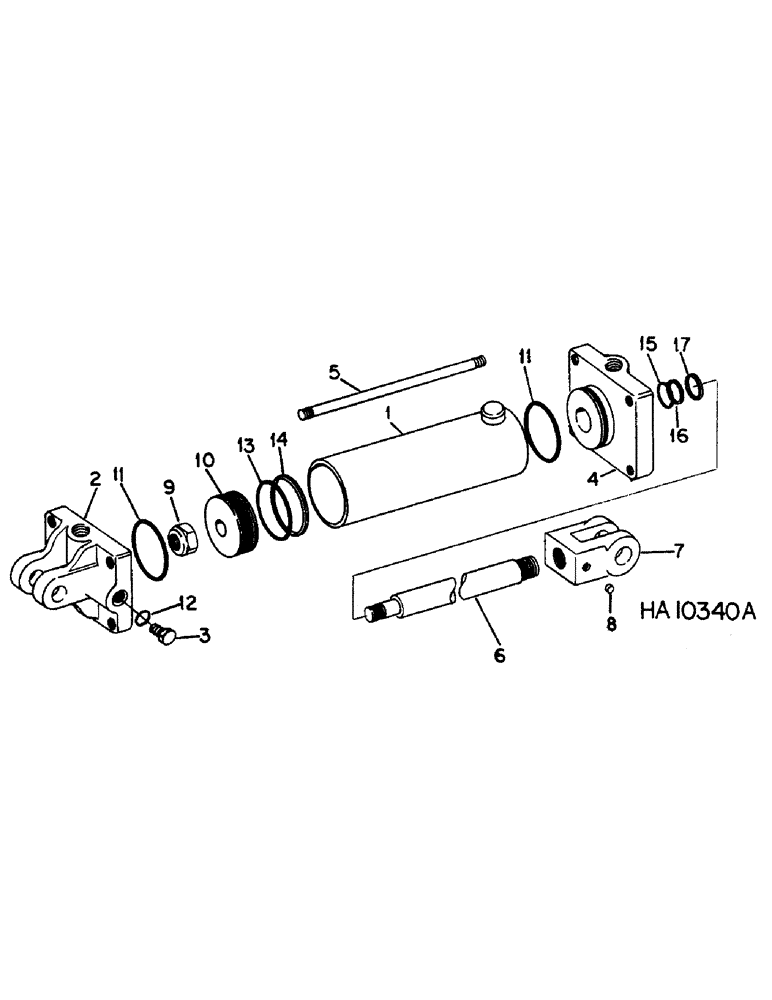

Запчасти Case IH 645 (L-05) - HYDRAULIC CYLINDERS, HYDRAULIC CYLINDER, IH, 3.25 X 8 DOUBLE ACTING

149919C93

CYLINDER

ASSY, 3.25 x 8 DA, IH

1шт.

87423770R

REMAN-HYD CYLINDER

645, 5000 both INTERNATIONAL HARVESTER VIBRA CHISEL, Reman for New P/N 149919C93

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

1

BODY ASSY, cyl (NSS)

1шт.

87423770R

REMAN-HYD CYLINDER

645, 5000, Reman For New P/N's 149919C93 & 87423770, N.A. Only

1шт.

87423770C

CORE-HYD CYLINDER

Return Number, For N.A. Only

1шт.

2

1255172C1

END

cyl rear

1шт.

3

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

4

1263284C91

END

cyl front

1шт.

5

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT, cyl tie

4шт.

425-1110

NUT,5/8"-18, G5

4шт.

6

145230C91

ROD ASSY, piston, includes 145233C1, end, 180121 bolt and 145453C1, pad

1шт.

7

145233C1

CLEVIS,1/4" - 12

END, piston rod

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

8

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, piston rod end

1шт.

9

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF PHC P/T lock type 8

1шт.

10

149924C1

PISTON

1шт.

11

O-RING, 3 x 3-1/4 class 6, note (NSS)

2шт.

12

O-RING, 1/2 OD tube class 6, note (NSS)

1шт.

13

O-RING, 2-3/4 x 2-15/16 class 5, note (NSS)

1шт.

14

SEAL, cyl piston, note (NSS)

1шт.

15

O-RING, 1-1/4 x 1-1/2 class 6, note (NSS)

1шт.

16

WASHER, piston back-up, note (NSS)

1шт.

17

SEAL, piston rod wiper, note (NSS)

1шт.

80116C1

SEAL

KIT, cyl seal service, consists of ref nos 11 thru 17

1шт.
