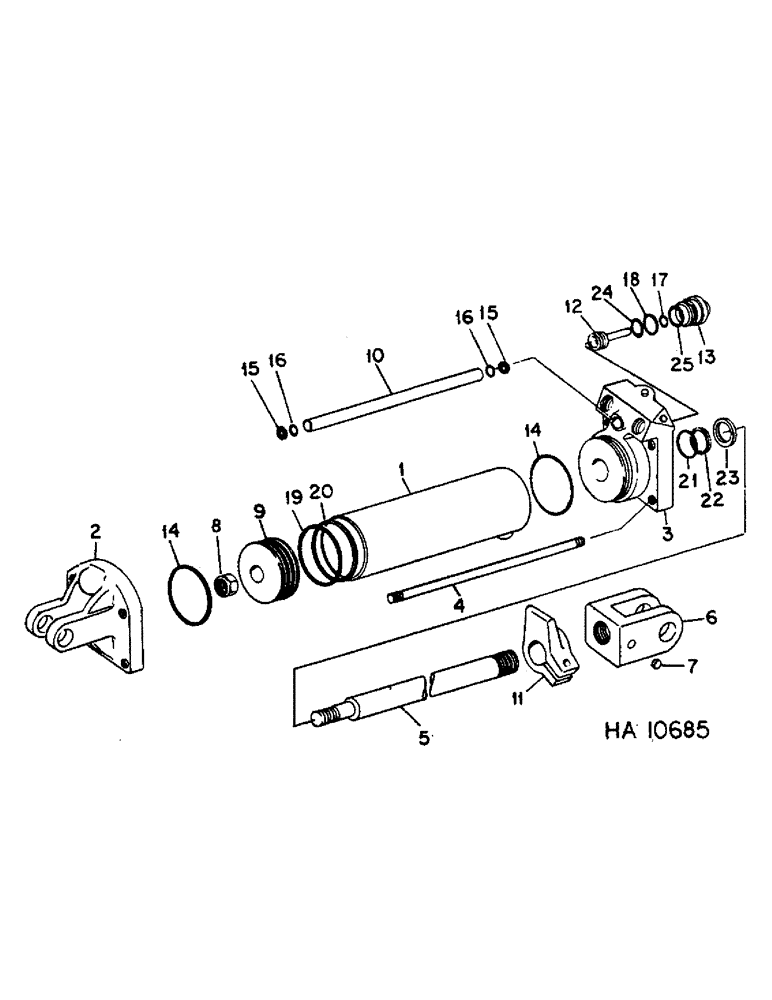

Запчасти Case IH 645 (L-04) - HYDRAULIC CYLINDERS, HYDRAULIC CYLINDER, IH, 3.5 X 8 DOUBLE ACTING

145352C91

CYLINDER ASSY.

CYLINDER ASSY, 3.5 x 8 DA, IH

1шт.

1

SLEEVE, cylinder (NSS)

1шт.

2

145354C1

HEAD

cylinder rear

1шт.

3

1260880C1

END

cylinder front

1шт.

4

145250C1

BOLT,5/8" - 11 x 345mm

ROD, cylinder tie

4шт.

102639

NUT,5/8"-11, G5

4шт.

5

145500C1

PISTON ROD

ROD, cylinder piston

1шт.

6

145233C1

CLEVIS,1/4" - 12

END, piston rod

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, piston rod end

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF PHC P/T lock type 8

1шт.

9

145422C1

PISTON

hyd cylinder

1шт.

10

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

224579C2

VALVE

cyl trip

1шт.

1263435C91

ADJUSTMENT SCREW

ASSY, L

1шт.

12

1260968C91

VALVE

ASSY, limit stop

1шт.

13

145359C1

RETAINER

FITTING ASSY, limit stop valve

1шт.

14

O-RING, 3-1/4 x 3-1/2 class 6, note (NSS)

2шт.

15

O-RING, 9/16 x 3/4 class 6, note (NSS)

2шт.

16

WASHER, return tube back-up, note (NSS)

2шт.

17

O-RING, 3/16 x 5/16 class 6, note (NSS)

1шт.

18

O-RING, 11/16 x 7/8 class 6, note (NSS)

1шт.

19

O-RING, 3 x 3-3/16 class 5, note (NSS)

1шт.

20

RING, piston seal, note (NSS)

1шт.

21

SEAL, cyl piston, note (NSS)

1шт.

22

(Not used this application)

1шт.

23

SEAL, piston rod wiper, note (NSS)

1шт.

24

RING, limit stop back-up, note (NSS)

1шт.

25

O-RING, 3/4 OD tube class 6, note (NSS)

1шт.

79980C1

SEAL KIT

seal repair, consists of ref nos 14 thru 21, 22 thru 25

1шт.

1272597C91

KIT

valve & transfer tube

1шт.
