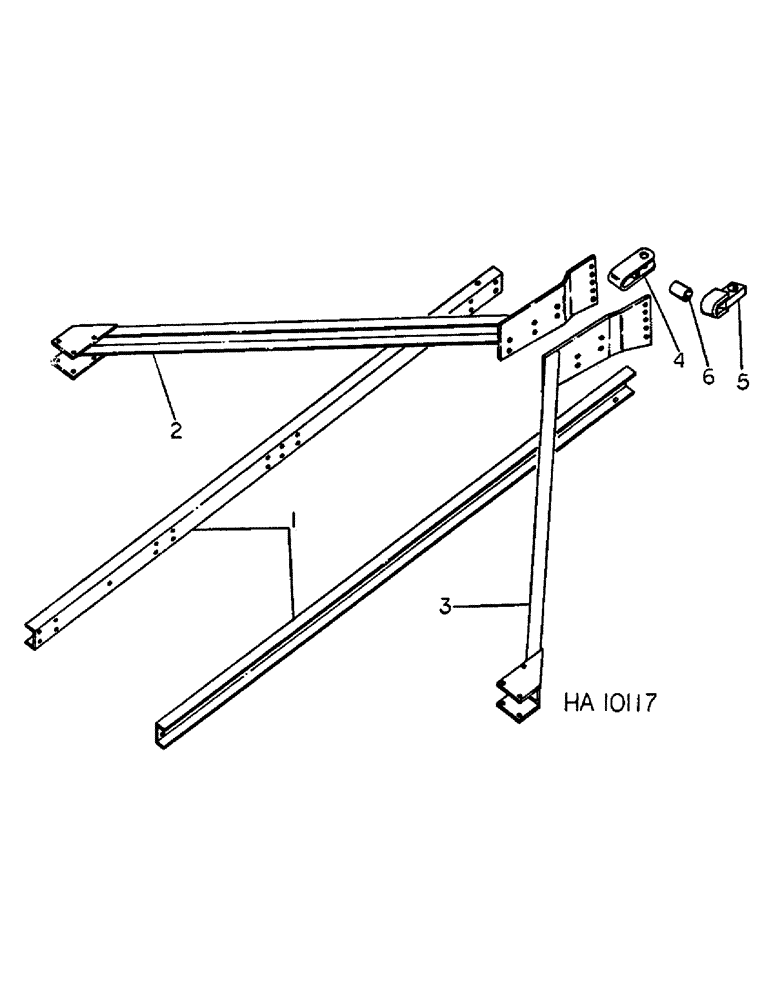

Запчасти Case IH 645 (B-03) - 645 VIBRA CHISEL, TRAIL BEHIND, TRACTOR HITCH

1

811307C1

CHANNEL

hitch beam

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

2

811327C1

BRACE

ASSY, hitch LH

1шт.

3

811328C1

BRACE

ASSY, hitch RH

1шт.

215723

BOLT,Hex, 1/2" - 13 x 5 3/4", Gr 5

1/2-13 x 5-3/4 hex-hd

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

6шт.

280954

NUT,3/4"-10, G5

6шт.

4

608499R21

CLEVIS

ASSY, tractor hitch, regular

1шт.

5

605866R91

TOW BAR

TONGUE, type hitch assy

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 x 5-1/2 hex-hd dld

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 hex-sltd

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

6

597326R1

SPACER

hitch clevis, for use w/machines equipped w/605866R91, tongue-type hitch

1шт.
