(F-12) - MULCHERS, MULCHER ARM EXTENSION WITH MULCHER CARRIER ARM, 18 FOOT MODELS 1970 THRU 1972

Запчасти Case IH 645 (F-12) - MULCHERS, MULCHER ARM EXTENSION WITH MULCHER CARRIER ARM, 18 FOOT MODELS 1970 THRU 1972

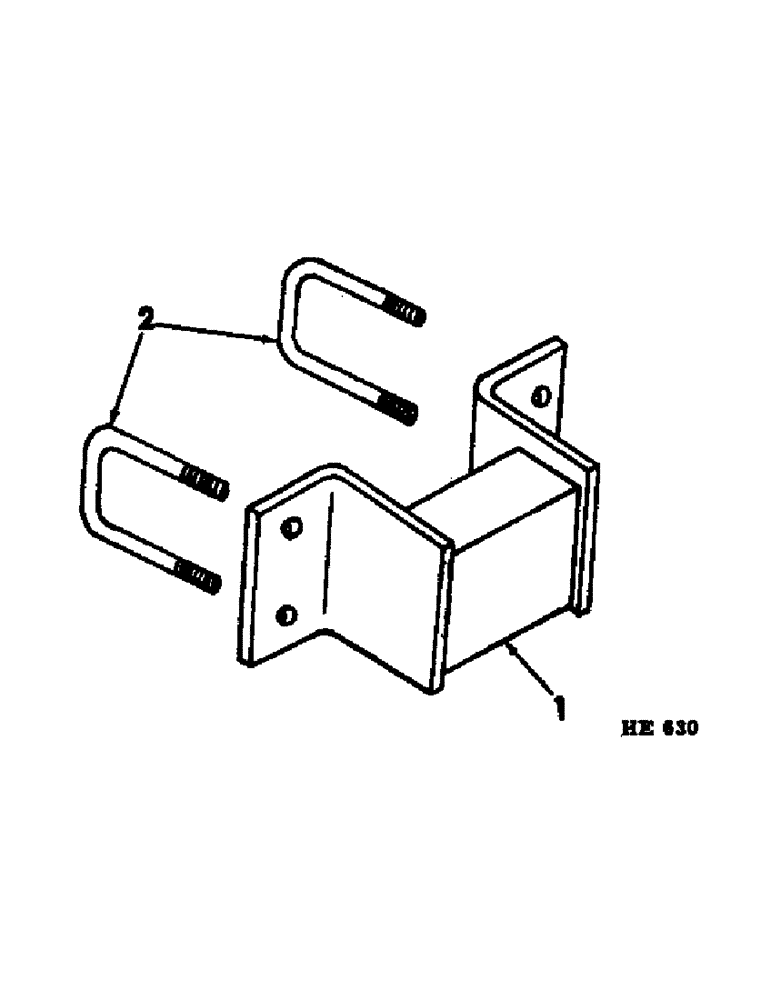

Схема запчастей Case IH 645 - (F-12) - MULCHERS, MULCHER ARM EXTENSION WITH MULCHER CARRIER ARM, 18 FOOT MODELS 1970 THRU 1972
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

598826R1

BRACKET

mulcher arm

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

mounting

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

598068R1

WASHER, .656 x 1.250 x .105

24шт.
