Запчасти Case IH 645 (F-07) - MULCHERS, 6 FOOT MULCHER, FOR USE ON DIRECT MOUNTED-TRAIL BEHIND AND 18 FOOT WING MODELS

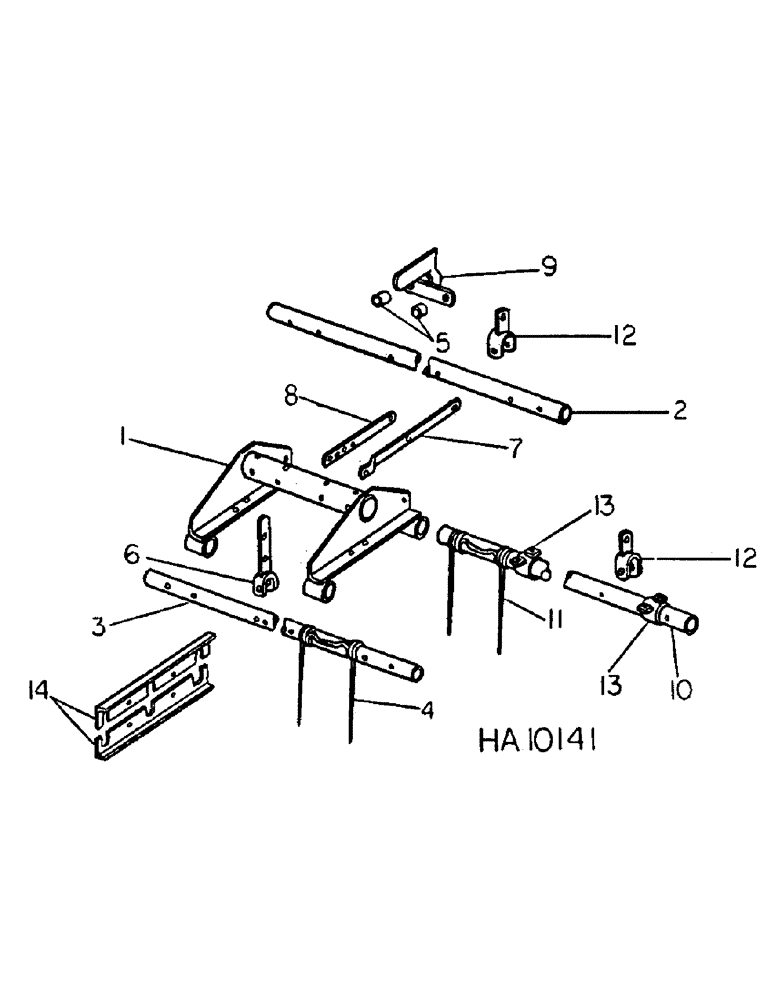

Схема запчастей Case IH 645 - (F-07) - MULCHERS, 6 FOOT MULCHER, FOR USE ON DIRECT MOUNTED-TRAIL BEHIND AND 18 FOOT WING MODELS

Артикул

Название

Примечание

Количество

1

485616R2

FRAME

6 foot mulcher

1шт.

2

485599R1

TUBE

BAR, 6 foot 1st tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

3

485600R1

TUBE

BAR, 6 foot 3rd tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

4

72901C1

TOOTH

spring

10шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

3/8-16 x 2-3/4 hex-hd shoulder

20шт.

472144R1

NUT

3/8-16 hex lock

20шт.

5

(Not used this application)

1шт.

6

485592R1

ARM

HANDLE, frame

1шт.

180159

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

7/16-14 x 2-3/4 hex-hd

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex-lock

2шт.

7

485593R1

SUPPORT

REACH, handle

1шт.

8

485594R1

BAR

REACH, adjusting

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1 std-hd-dld

4шт.

607891R1

WASHER

.469 x 1.000 x .054 ga

3шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

3шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

9

(Not used this application)

1шт.

10

485605R1

TUBE

BAR, 6 ft 2nd tooth

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

3шт.

11

72901C1

TOOTH

spring for use w/2nd bar

5шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

3/8-16 x 2-3/4 hex-hd shoulder

10шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 CDP hex lock

10шт.

12

485601R1

ARM

POST, 1st and 2 (D bar)

2шт.

NLS

NO LONGER SERVICED

7/16-14 x 2-3/4 hex-hd

2шт.

473213C1

NUT, 7/16-14 hex lock

2шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN, 7/16 x 1-1/2 std hd

1шт.

13

485603R1

BUSHING

second bar

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

485598R1

SUPPORT

RAIL, centre

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 hex

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Выбрано товаров: 37
