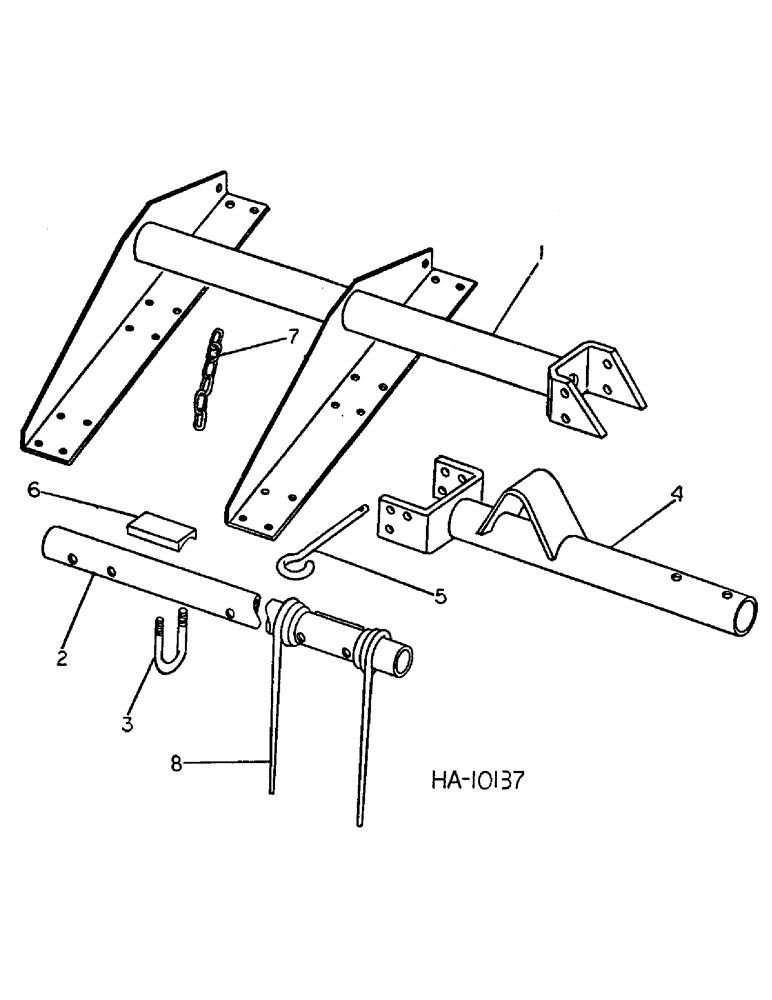

Запчасти Case IH 645 (F-04) - MULCHERS, 3 FOOT, 6 INCH MULCHER FOR USE ON 18 FOOT WING MODELS

1

547849R1

FRAME

3 foot 6 inch LH wing shown

1шт.

1

547850R1

FRAME, 3 foot 6 inch RH wing

1шт.

2

547852R1

TUBE

tooth bar

6шт.

3

547854R1

BOLT,3/8" - 16 x 2 3/4"

U-BOLT, tube clamping

24шт.

120377

NUT,3/8" - 16, Gr 5

48шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

48шт.

4

547855R1

HINGE

SUPPORT, centre hinge

2шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2-13 x 3-1/2 hex-hd

4шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 x 5 hex-hd

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

6шт.

5

547856R1

PIN

hinge

2шт.

480523R1

HAIR PIN COTTER

quick attachable

2шт.

6

547853R1

CLAMP

tube

12шт.

7

547857R1

CHAIN (AG)

CHAIN, wing

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

472144R1

NUT

3/8-16 hex lock

2шт.

619856R1

WASHER

.406 x 1.000 x .056

4шт.

8

72901C1

TOOTH

spring

18шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

3/8-16 x 2-3/4 hex-hd shoulder

36шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 CDP hex lock

2шт.
