Запчасти Case IH 645 (F-02) - MULCHERS, MULCHER CARRIER ARM, 1970 TO 1972

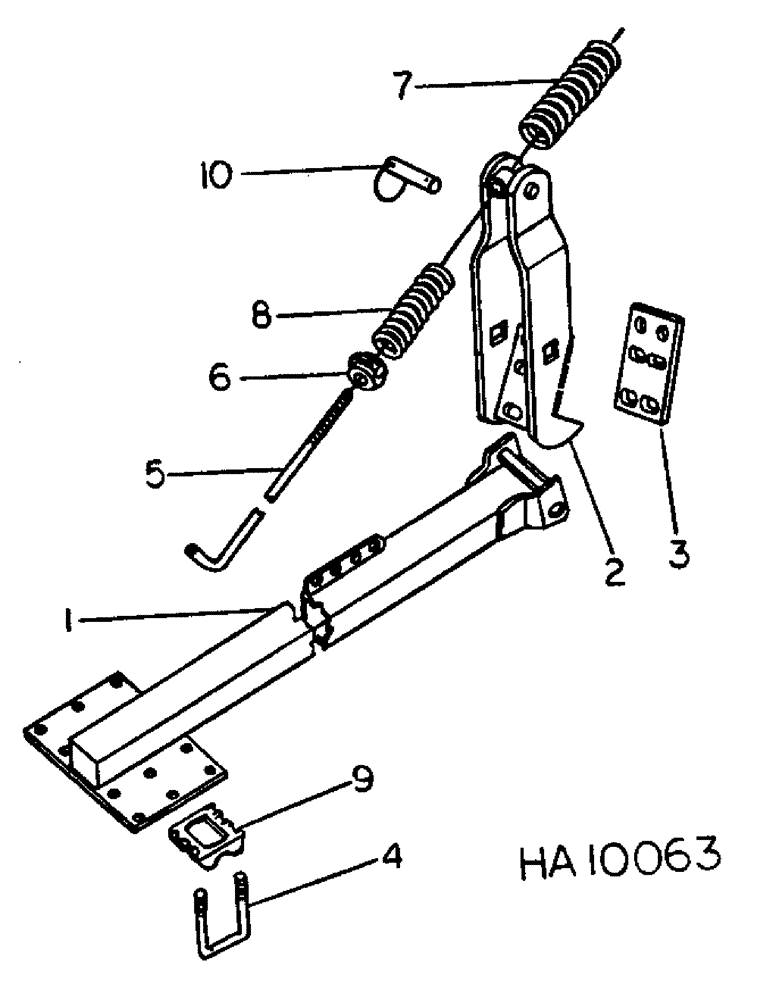

Схема запчастей Case IH 645 - (F-02) - MULCHERS, MULCHER CARRIER ARM, 1970 TO 1972

Артикул

Название

Примечание

Количество

1

485582R1

BOLT

U-BOLT, carrier arm

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

2

485581R1

CLAMP

tube

1шт.

3

596575R91

ARM

carrier

1шт.

4

596580R1

ROD

compression

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

21753R1

WASHER

.781 x 1.500 x .054 ga

2шт.

427897

NUT, 3/4-16 hex-jam

2шт.

5

1431BX

COLLAR CLAMP

COLLAR, rod, includes 1-110448 screw

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2-13 x 3/4 cup-pt set

1шт.

6

596574R1

SPRING

compression lower

1шт.

7

596581R91

PIN, locking

1шт.

446161

WIRE CONNECTOR,6 Pole

.219 x .438 x .036 ga

1шт.

480523R1

HAIR PIN COTTER

1шт.

8

485611R1

SPRING

compression upper

1шт.

9

596577R91

BRACKET

attaching

1шт.

271803

BOLT,Hex, 3/4" - 16 x 4 1/2", Gr 5

3/4-10 x 1-102 hex-hd

1шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 hex lock

1шт.

10

596579R1

CLAMP

bracket mounting

1шт.

271758

BEARING ASSY,Hex, 5/8" - 18 x 4 1/2", Gr 5

BOLT, 5/8-11 x 6 hex-hd

4шт.

589068R1

WASHER

.656 x 1.250 x .105 ga

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

Выбрано товаров: 24
