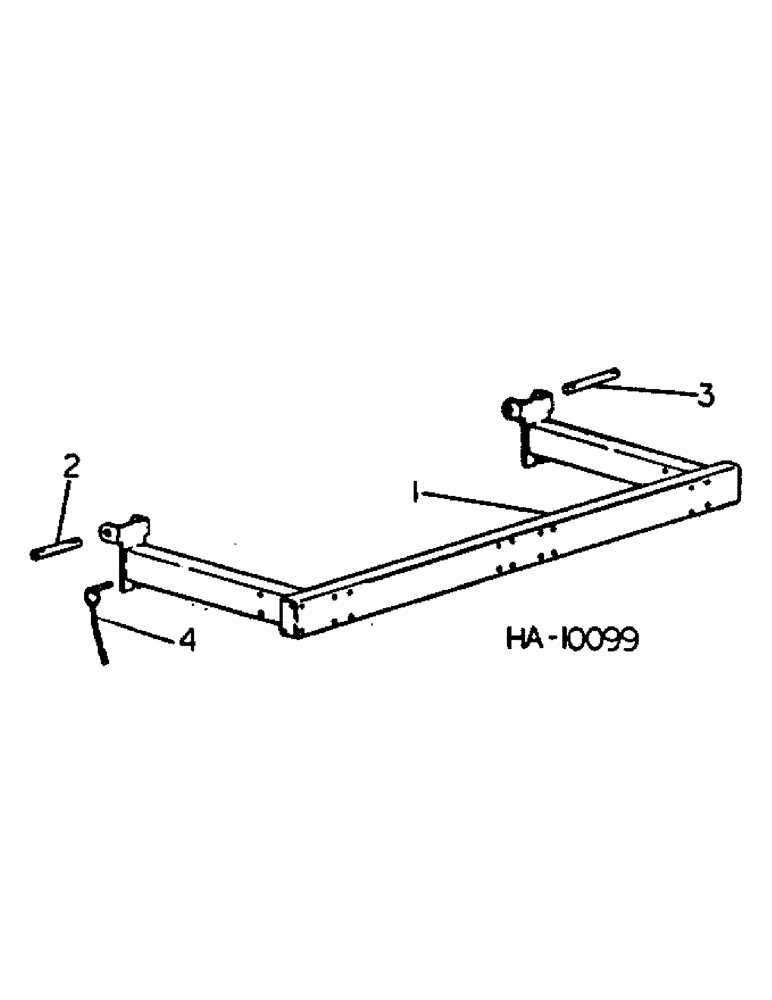

Запчасти Case IH 645 (E-8) - 645 VIBRA CHISEL, DIRECT MOUNTED, C-FRAME

1

811360C1

EXTENSION

ASSY, wing C-frame

2шт.

2

591631R1

AXLE PIN

PIN, C-frame hinge

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

8шт.

21753R1

WASHER

.781 x 1.500 x .054

8шт.

3

811634C1

PIN, front C-frame hinge & truss rod, for use with C-frame w/or w/o mulchers

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

21753R1

WASHER

.781 x 1.500 x .054

4шт.

4

811391C1

PIN

C-frame hinge lock

4шт.
