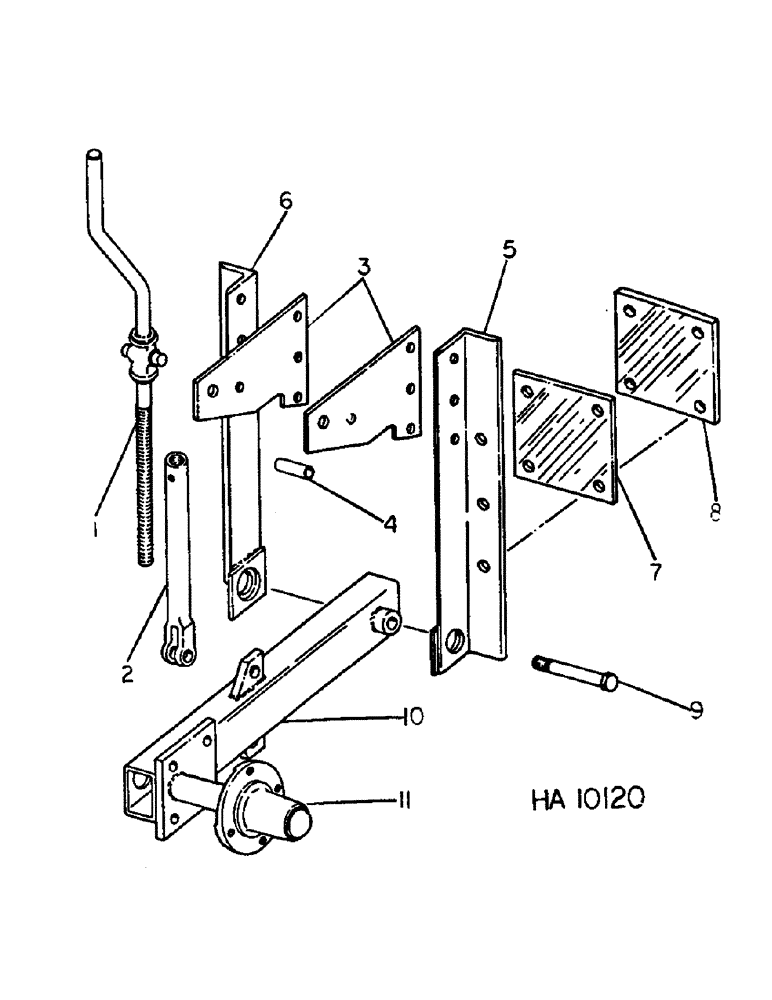

Запчасти Case IH 645 (E-6) - 645 VIBRA CHISEL, DIRECT MOUNTED, GAUGE WHEEL MOUNTING PARTS
№
Артикул
Название
Примечание
Количество
1
599815R1
CRANK
ASSY, gauge wheel adjusting
2шт.
178375R1
WASHER
.781 x 1.250 x .054
4шт.
2
458520R1
THREADED TIE-ROD
YOKE, adjusting crank
2шт.
126098
FITTING
5/16 drive lub
2шт.
467750R1
WASHER
.781 x 1.500 x .105
2шт.
Q1335
AXLE PIN
PIN, 3/4 x 2 std hd
2шт.
432-1620
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1 1/4"
2шт.
3
599814R2
BAR
adjusting crank guide
4шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 x 1-1/4 hex-hd
12шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
1/2-13 x 3-1/4 hex-hd
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
14шт.
4
517920R1
SPACER,1/2" Pipe x 2"
guide bar
2шт.
5
599807R1
ANGLE
ASSY, gauge wheel mtg LH
2шт.
6
599808R1
ANGLE
ASSY, gauge wheel mtg RH
2шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
BOLT, 3/4-10 x 6 hex-hd
4шт.
467750R1
WASHER
.781 x 1.500 x .105
8шт.
7
599813R1
BAR
angle clamp
2шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
BOLT, 3/4-10 x 6 hex-hd
8шт.
467750R1
WASHER
.781 x 1.500 x .105
8шт.
8
599812R1
BAR
angle clamp rear
2шт.
20300R1
SCREW,Hex, 3/4"-10 x 6", G5
BOLT, 3/4-10 x 6 hex-hd
8шт.
467750R1
WASHER
.781 x 1.500 x .105
8шт.
9
17776R1
BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 2
gauge wheel axle pivot, 3/4-10 x 4-1/2 hex-hd dld
2шт.
427637
SLOTTED NUT,3/4"-10, G5
NUT, 3/4-10 hex-sltd
2шт.
23245R1
WASHER
.781 x 1.750 x .179
2шт.
103387
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
2шт.
10
599819R1
AXLE
ASSY, gauge wheel, includes 1-599823R11, spindle
2шт.
17776R1
BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 2
3/4 x 4-1/2 dld pln type 1
2шт.
427637
SLOTTED NUT,3/4"-10, G5
NUT, 3/4 slt type 5
2шт.
103387
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
2шт.
23245R1
WASHER
.781 x 1.750 x .164
4шт.
11
599823R1
SPINDLE ASSY, gauge wheel axle, includes 1-467750R1, washer, 1-427640, nut, 1-103396, pin
2шт.
Выбрано товаров: 36
