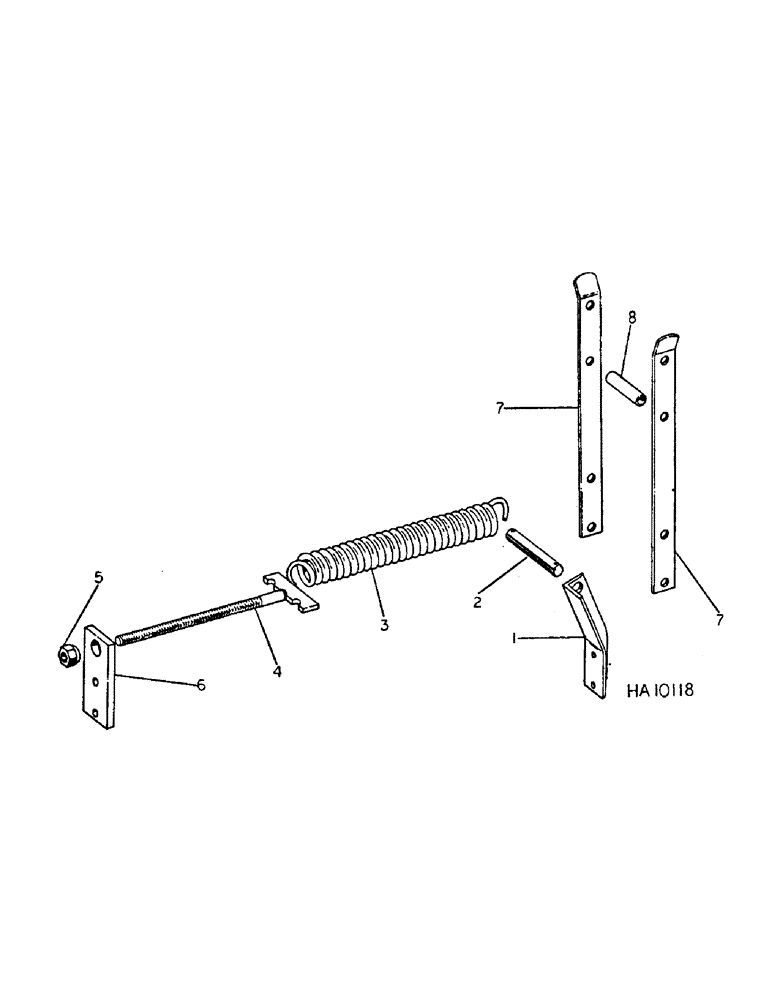

Запчасти Case IH 645 (E-5) - 645 VIBRA CHISEL, DIRECT MOUNTED, LIFT HELPER SPRING UNIT, MACHINES EQUIPPED W/C FRAME EXTENSION

1

811386C1

ANGLE

helper spring support RH shown

1шт.

1

811387C1

ANGLE

helper spring support LH

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

591649R1

PIN

helper spring

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

3

590258R1

VALVE SPRING

SPRING, lift helper

4шт.

4

811395C1

BOLT

ASSY, lift connecting

2шт.

5

591650R1

NUT

conn bolt

2шт.

6

811323C1

BAR

spring support

2шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2-13 x 3-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

178374R1

WASHER

.531 x 1.250 x .054 ga

4шт.

7

811355C1

STRAP

wing support

4шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 hex-hd

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

Q3552

PIN

1/2 x 4 std hd dld

2шт.

599744R1

AXLE PIN

PIN, Q.A. cotter

2шт.

8

103952H

SPACER

wing support

2шт.
