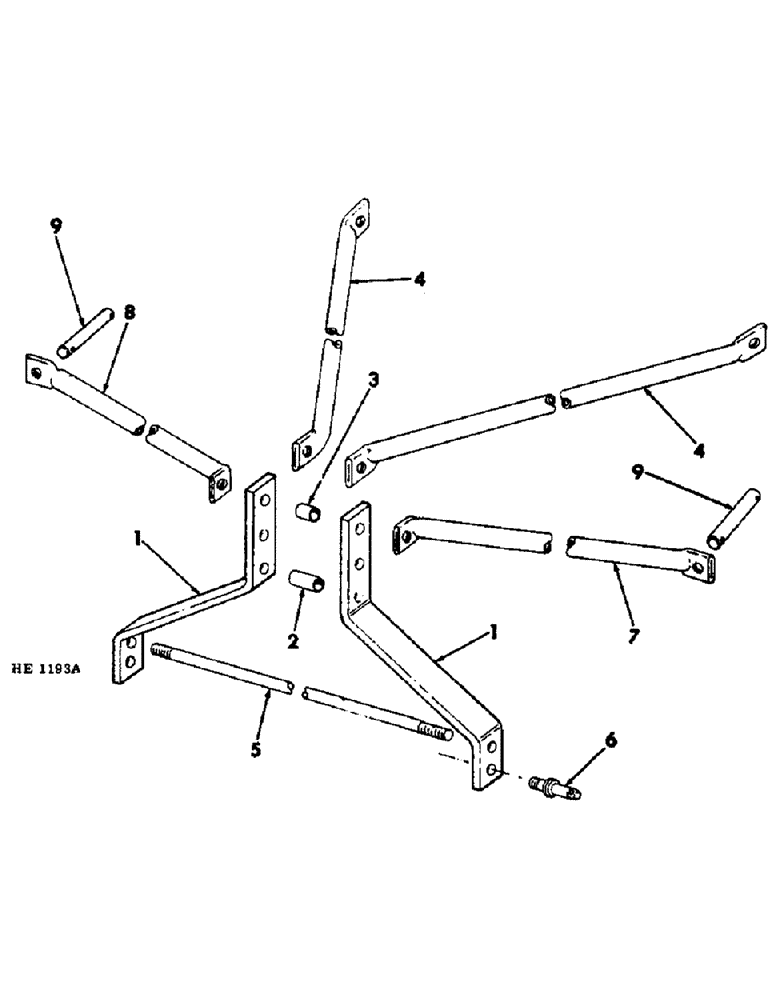

Запчасти Case IH 645 (E-4) - 645 VIBRA CHISEL, DIRECT MOUNTED, THREE POINT HITCH

1

811381C1

SUPPORT, hitch

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

2

597801R1

SPACER

hitch support

1шт.

22837R1

SCREW

BOLT, 1-8 x 5-1/2 hex-hd

1шт.

9849633

NUT,1"-8, G5

1шт.

3

581329R1

SPACER, 1 x 1-1/4 pipe

1шт.

4

811380C1

BRACE, truss rod

2шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3/4-10 x 3-1/2 hex-hd

2шт.

22837R1

SCREW

BOLT, 1-8 x 5-1/2 hex-hd

1шт.

280954

NUT,3/4"-10, G5

2шт.

9849633

NUT,1"-8, G5

1шт.

5

811585C1

ROD, hitch truss

1шт.

9849633

NUT,1"-8, G5

4шт.

6

472790R1

STUD

category 11 lower link

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 hex

2шт.

492-11112

LOCK WASHER,1 1/8"

WASHER, 1-1/8 lock

2шт.

7

811400C1

ROD

truss LH, for use with wing C, frames or mulchers, machines prior to May 1977

1шт.

8

811584C1

ROD, truss RH, for use with wing C, frames or mulchers, machines prior to May 1977

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

For use with mulchers without wing C-frames Hex, 3/4"-10 x 1 3/4", G5

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

9

811634C1

PIN, rod support, machines prior to May 1977

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

21753R1

WASHER

.781 x 1.500 x .054

4шт.
