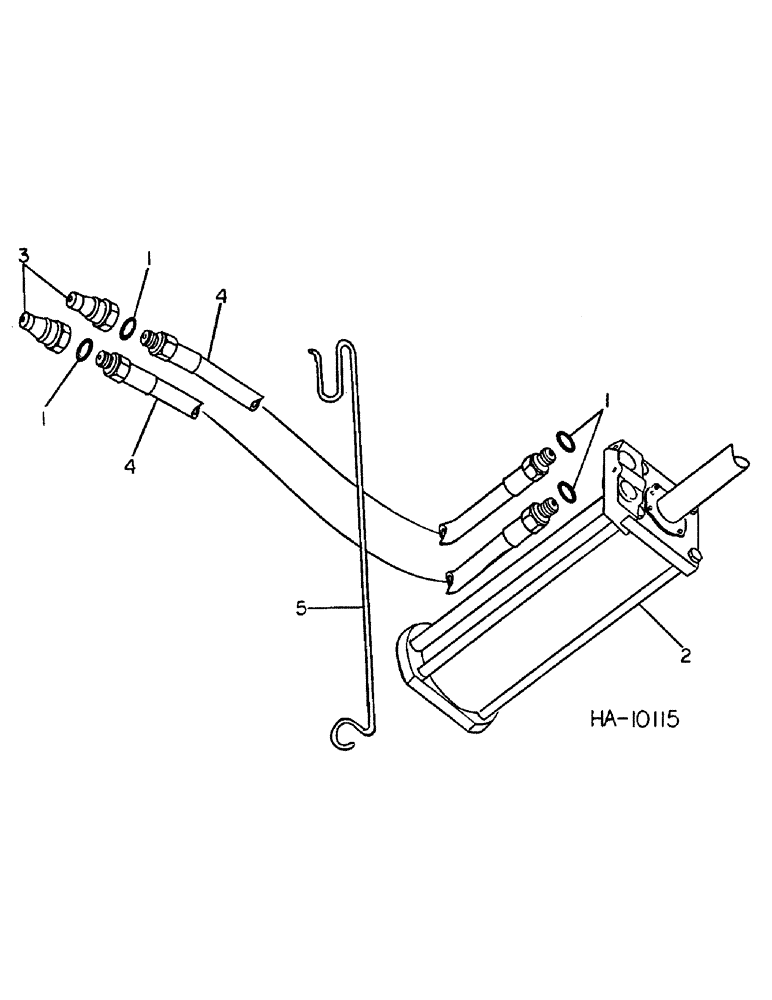

Запчасти Case IH 645 (D-19) - 645 VIBRA CHISEL, 18 WING, HYD. CONNECTIONS, ROCKSHAFT FOR MACHINES W/HAND WINCH PRIOR TO MAY 1974

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 5/16 x 3/32

4шт.

2

145352C91

CYLINDER ASSY.

CYLINDER ASSY, 3.5 x 8 DA 2500 PSI, replaces 61105C91, 371292R95 & 546719R91

1шт.

2

1263474C91

CYLINDER ASSY.

CYLINDER ASSY, 3.5 x 8 DA 3000 PSI, replaces 403842R94

1шт.

2

388688R95

CYLINDER

CYL ASSY, hyd 4 x 8 DA 2500 PSI for components refer to hydraulic cylinders section L

1шт.

2

1343711C1R

REMAN-HYD CYLINDER

645 INTERNATIONAL HARVESTER VIBRA CHISEL, CYL ASSY, hyd 4 x 8 DA 2500 PSI, Reman for New PN 388688R95

1шт.

2

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

3

395149R1

QUICK MALE COUPLING

COUPLING, hose half female, or

2шт.

3

544787R91

COUPLING, BREAK AWAY

COUPLING, hydraulic male, recommended hydraulic parts

2шт.

4

478706R91

HOSE ASSY.

HOSE, 1/2 x 175 in.

2шт.

5

651793R2

SUPPORT

hyd hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd bolt

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105 ga

2шт.
