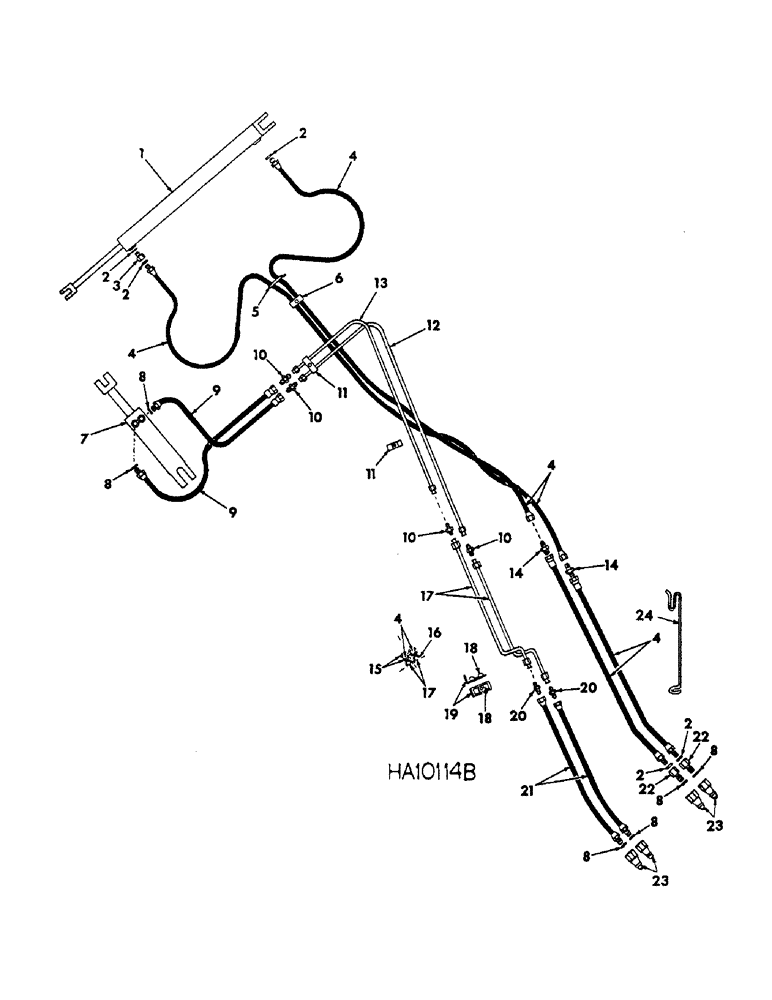

Запчасти Case IH 645 (D-17) - 645 VIBRA CHISEL, 18 WING, HYD. CONNECTIONS, ROCKSHAFT AND WING FOR TRACTORS WITH DUAL HYD. SYSTEM

1

811677C91

CYLINDER

CYL ASSY, hyd 3 x 48 DA, Cross, or

1шт.

1

813238C91

CYLINDER

CYL ASSY, hyd 3 x 48 DA, Prince, for components refer to hydraulic cylinders section L

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .082, recommended hydraulic parts

5шт.

3

811683C1

VALVE

RESTRICTOR, wing lift hyd cyl

1шт.

4

811679C1

HOSE

wing lift hyd cyl 3/8 x 128, recommended hydraulic parts

2шт.

5

306132C1

CABLE TIE,14.5" L

TIE, hydraulic hose, replaces 816502C1

1шт.

6

317054R1

CLAMP

hydraulic hose

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

145352C91

CYLINDER ASSY.

CYLINDER ASSY, 3.5 x 8 DA 2500 PSI, replaces 61105C91, 371292R95 & 546719R91

1шт.

7

1263474C91

CYLINDER ASSY.

CYLINDER ASSY, 3.5 x 8 DA 3000 PSI, replaces 403842R94, use w/ 17 ft to 22 ft w/o mulchers

1шт.

7

388688R95

CYLINDER

CYL ASSY, hyd 4 x 8 DA 2500 PSI use w/17 ft to 27 ft w/mulchers, for components refer to hydraulic cylinders section L

1шт.

7

1343711C1R

REMAN-HYD CYLINDER

645 INTERNATIONAL HARVESTER VIBRA CHISEL, CYL ASSY, hyd 4 x 8 DA 2500 PSI use w/17 ft to 27 ft w/mulchers, Reman for New PN 388688R95

1шт.

7

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 5/16 x 3/32, recommended hydraulic parts

6шт.

9

198202H1

HOSE, 1/2 in. x 36 in. hyd rockshaft, recommended hydraulic parts

2шт.

10

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

hydraulic tube

4шт.

11

588322R2

CLAMP, hyd tube

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

811681C11

TUBE,1" OD, 36.5, 11" Length

ASSY, hyd cyl pressure

1шт.

13

811682C11

TUBE,1" OD, 40, 11.5" Length

ASSY, hyd cyl return

1шт.

14

443981

CONNECTOR, ELEC

NIPPLE, 3/8-18 autom pipe, recommended hydraulic parts

2шт.

15

317054R1

CLAMP

hose

2шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4-20 x 1-3/4 hex hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

588322R2

CLAMP, hydraulic tube

1шт.

17

811680C11

TUBE,1" OD, 52, 5.75" Length

hydraulic front

2шт.

18

588322R2

CLAMP, hyd tube support

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

811684C1

SUPPORT

hyd tube clamp

1шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/2 hex-hd

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

478754R1

ADAPTER

UNION, reducer, recommended hydraulic parts

2шт.

21

464046R91

HOSE ASSY.

HOSE, 1/2 x 75 inch hydraulic, recommended hydraulic parts

2шт.

22

407045R1

FITTING

UNION, tube reducer, recommended hydraulic parts

2шт.

23

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic male, or

4шт.

23

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic male, recommended hydraulic parts

4шт.

24

651793R2

SUPPORT

flexible hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.
