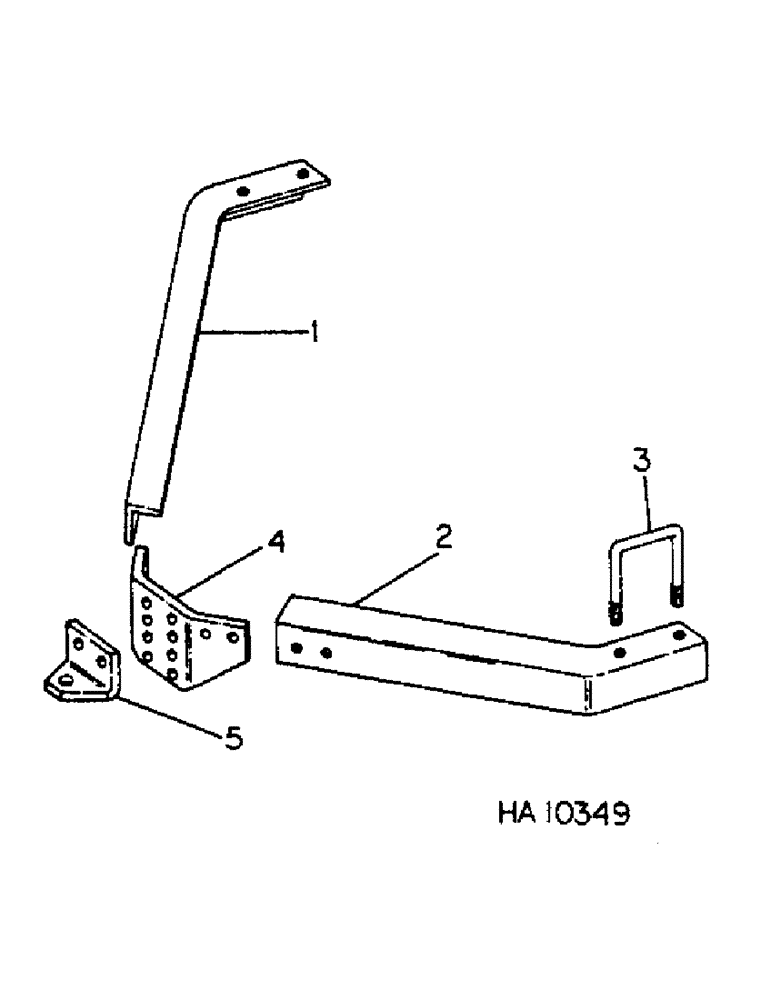

Запчасти Case IH 645 (D-16) - 645 VIBRA CHISEL, 18 FOOT WING, TRAILING HITCH

1

598843R2

ANGLE

trailing hitch LH

1шт.

2

598844R2

ANGLE

trailing hitch RH

1шт.

3

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT, mounting

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

4

598071R1

SUPPORT

hitch

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

5

598072R1

ANGLE

hitch

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.
