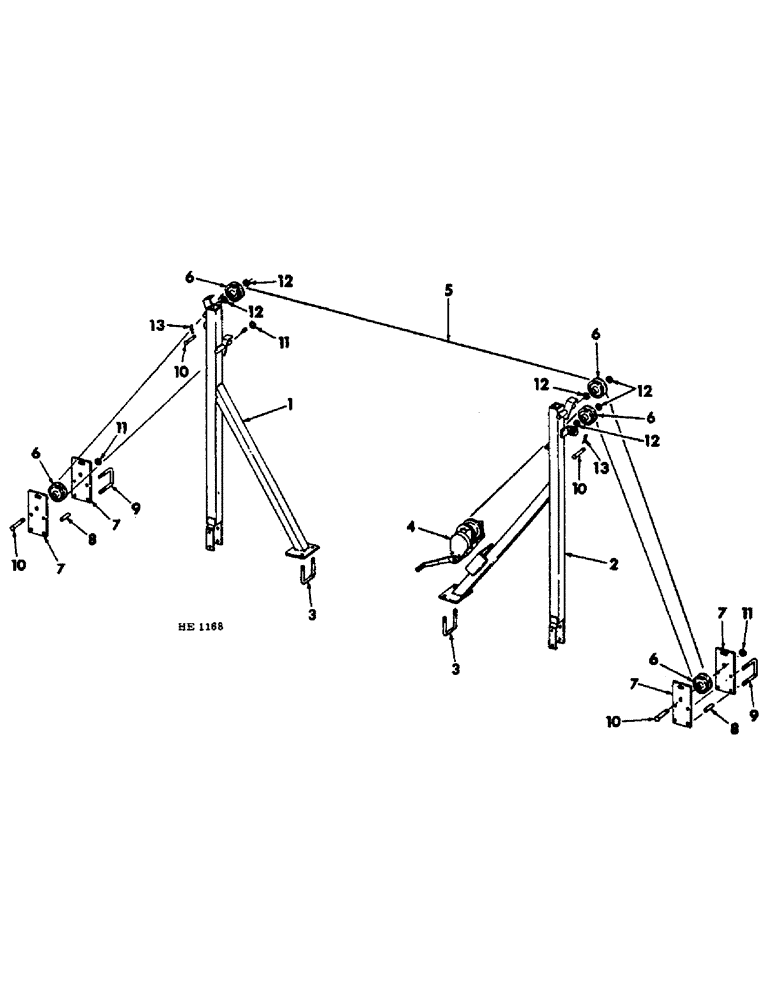

Запчасти Case IH 645 (D-11) - 645 VIBRA CHISEL, 18 FOOT WING, HAND WINCH WING LIFT, MACHINES BUILT PRIOR TO MAY 1974

1

811692C1

FRAME, winch wing lift LH

1шт.

2

811693C1

FRAME, winch wing lift RH

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT, frame support

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

597637R91

WINCH

ASSY, wing lift hand, machines prior to 1973, for service of the complete winch order 1-812271C91, winch, refer to hand winch assy

1шт.

4

812271C91

WINCH

ASSY, wing lift hand 1973 to 1974, refer to hand winch assy

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

619856R1

WASHER

.406 x 1.000 x .056 ga

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

597638R1

CABLE

3/16 in. dia 7 x 19 hand winch 42 ft

1шт.

6

605885R1

PULLEY

lift

5шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

5шт.

7

811699C1

BAR, wing pulley support

4шт.

8

PO14686

SPACER, 3/4 x 1-3/4 std pipe

8шт.

9

811690C1

U-BOLT

pulley support

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

518505R1

HEADED PIN,3/4" x 3"

PIN, 3/4 x 3 std hd dld ht

4шт.

11

467750R1

WASHER

.781 x 1.500 x .105

3шт.

12

178375R1

WASHER

.781 x 1.250 x .054

6шт.

13

599744R1

AXLE PIN

PIN, Q.A. cotter

2шт.
