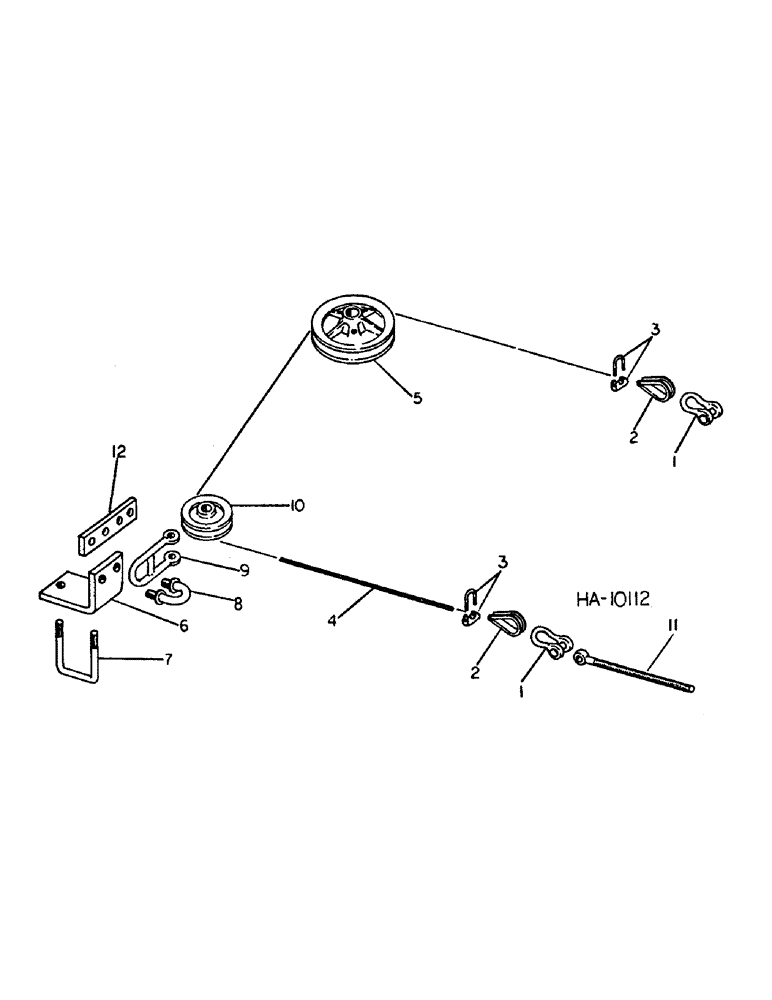

Запчасти Case IH 645 (D-10) - 645 VIBRA CHISEL, 18 FOOT WING, WING WHEEL LIFT PARTS

1

605824R91

SHACKLE

cable anchor

4шт.

2

597462R1

CUP

THIMBLE, cable

4шт.

3

605827R91

CLIP

CLAMP, lift cable

12шт.

4

597364R2

CABLE

wing wheel lift

2шт.

5

605657R1

PULLEY

lift cable main frame

2шт.

608085R1

WASHER

1.406 x 2.000 x .054

4шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

6

811654C1

ANGLE

wing cable support

2шт.

7

811655C1

BOLT,5/8" - 11 x 5 1/2"

U-BOLT, support angle

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

592379R11

ANCHOR

ASSY, pulley clevis

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

592378R91

CLEVIS

ASSY, pulley

2шт.

10

813116C1

PULLEY

lift cable

2шт.

22095R1

PIN

3/4 x 3 std-hd-dld type 5

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

11

555627R1

BOLT,Eye, 5/8" - 11 x 11"

lift cable eye

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

464623R1

WASHER

.656 x 1.500 x .105

4шт.

12

811005C1

BAR

pulley mounting, required for 9-3/4 in. spacing on 22 ft 23-1/2 ft and 27 ft machines

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
