Запчасти Case IH 645 (D-09) - 645 VIBRA CHISEL, 18 FOOT WING, WHEEL AND HUB, WING FRAME

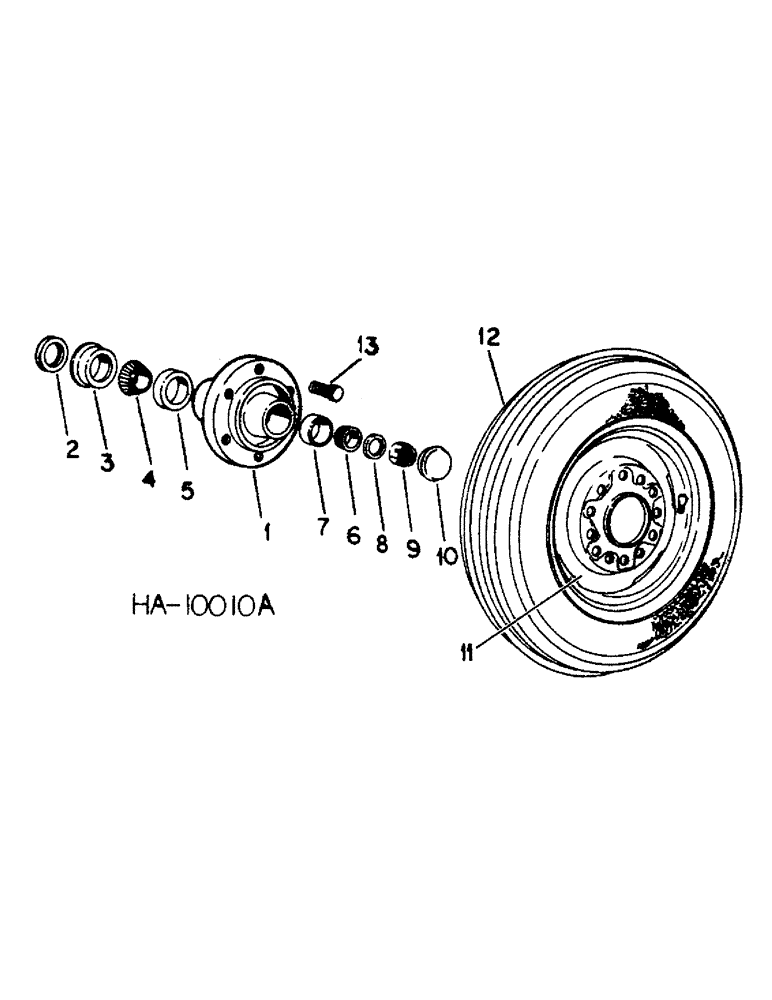

Схема запчастей Case IH 645 - (D-09) - 645 VIBRA CHISEL, 18 FOOT WING, WHEEL AND HUB, WING FRAME

Артикул

Название

Примечание

Количество

1

591535R1

HUB

wing wheel, 4 Bolt

2шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

3

472222R1

SLEEVE

oil seal wear

2шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, hub inner bearing

2шт.

5

651817R1

BEARING CUP

CUP, hub inner bearing

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, hub outer bearing

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651814R1

BEARING CUP

CUP, hub outer bearing

2шт.

8

467750R1

WASHER

.781 x 1.500 x .105

2шт.

9

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

10

602959R1

PLUG

CAP, wheel hub

2шт.

11

463036R1

WHEEL (STEERING)

WHEEL, 14 x 5 KB

2шт.

12

TIRE, 7.50-14 4 ply wagon W1, tubeless

2шт.

387841R91

VALVE

tubeless tire

2шт.

13

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 7/8 wheel

8шт.

811382C1

PACKAGE

tire valve guard service

1шт.

Выбрано товаров: 17
