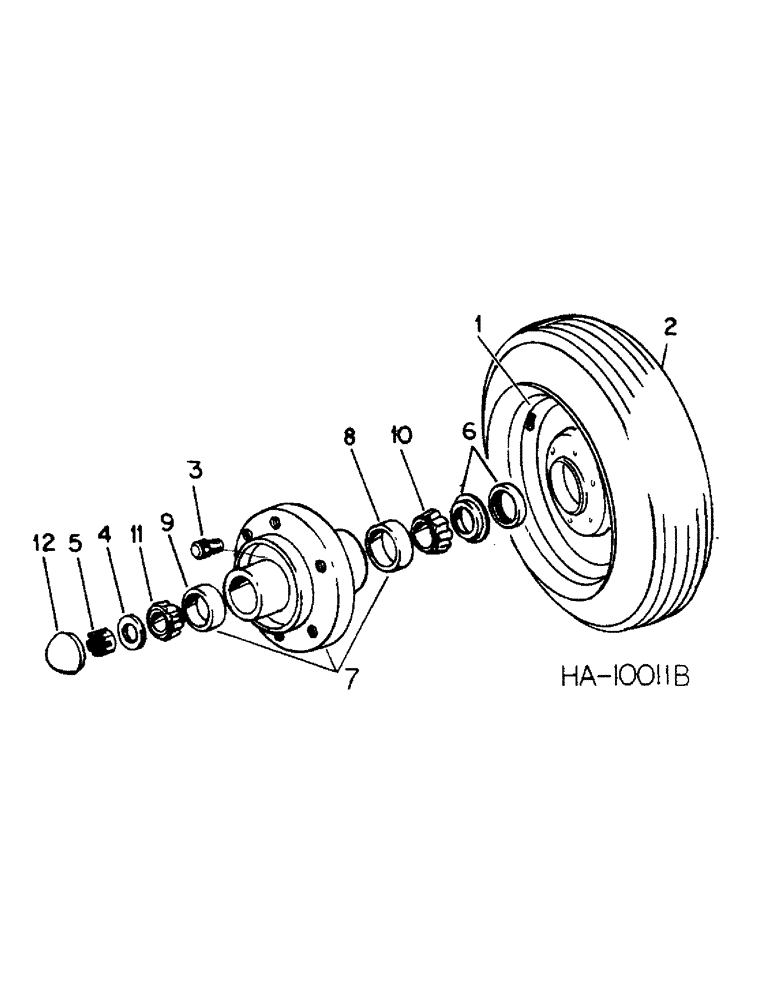

Запчасти Case IH 645 (D-08) - 645 VIBRA CHISEL, 18 FOOT WING, WHEEL AND HUB, MAIN FRAME

1

481344R91

WHEEL

14 x 8 KB

2шт.

2

TIRE AND TUBE, 9.5L-14 6 ply wagon W1 tube type w/13CW valve

2шт.

3

351097R1

BOLT, 1/2-20 x 7/8 wheel

12шт.

4

619373R1

WASHER

.906 x 2.000 x .164

2шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex sltd

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

6

606556R91

OIL SEAL

SEAL ASSY, wheel hub oil

2шт.

7

606468R11

HUB

ASSY, main frame wheel

2шт.

8

663558R1

BEARING CUP

CUP, wheel hub inner bearing

2шт.

9

651817R1

BEARING CUP

CUP, wheel hub outer bearing

2шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

2шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

2шт.

12

663906R1

CAP

wheel hub

2шт.

811382C1

PACKAGE

tire valve guard service

1шт.
