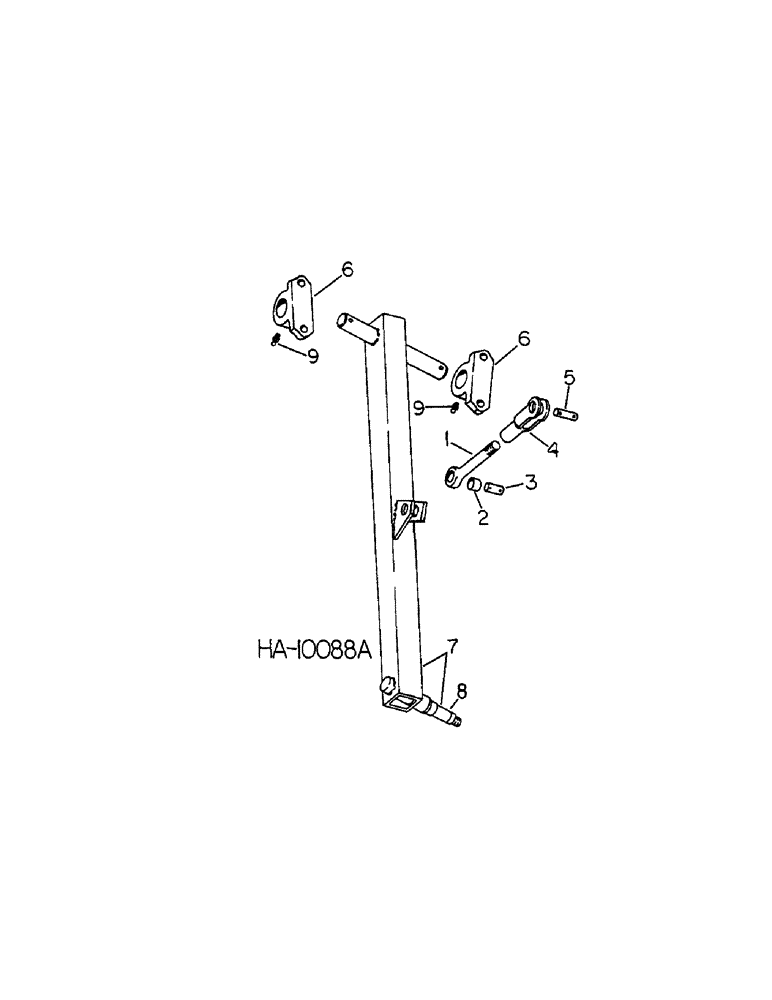

Запчасти Case IH 645 (D-07) - 645 VIBRA CHISEL, 18 FOOT WING, MAIN FRAME AXLE

1

811618C1

BOLT,1 1/4" - 7 x 8"

axle lift link eye

2шт.

2

597355R1

BUSHING

eye bolt

2шт.

3

597356R1

PIN

eye bolt

2шт.

119203

PIN,3/8" x 3"

Split (Cotter), 3/8" x 3"

2шт.

4

591536R1

YOKE

lift link eye bolt

2шт.

5

591537R2

PIN

eye bolt yoke

2шт.

19479R1

PIN,1/4" x 2", Coiled

4шт.

6

597346R1

BEARING CARRIER

axle support

4шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/2 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

7

811630C11

AXLE

ASSY, main frame LH

1шт.

7

811631C11

AXLE

ASSY, main frame RH

1шт.

22811R1

WASHER

2.031 x 2.750 x .067

4шт.

119203

PIN,3/8" x 3"

Split (Cotter), 3/8" x 3"

4шт.

8

597351R11

SPINDLE

ASSY, axle service, includes 1-619373R1, washer, 1-70120D, nut and 1-103388, cotter pin

2шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex jam

2шт.

619373R1

WASHER

.906 x 2.000 x .164 pln

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.
