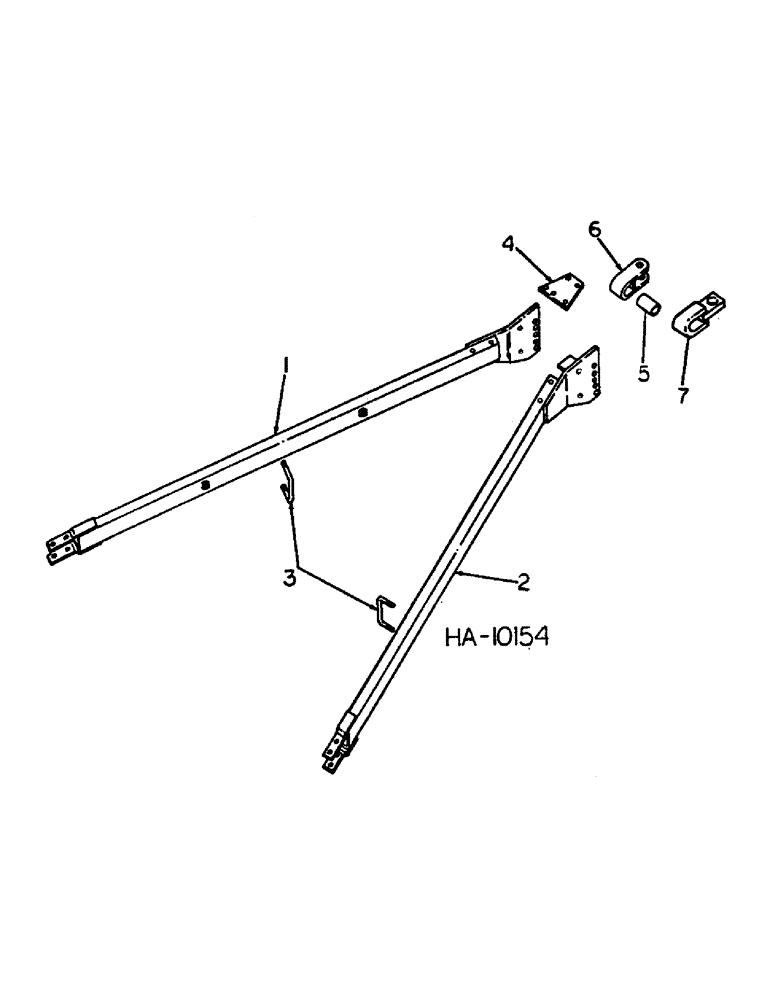

Запчасти Case IH 645 (D-05) - 645 VIBRA CHISEL, 18 FOOT WING, TRACTOR HITCH

1

811613C1

BEAM

ASSY, hitch LH

1шт.

2

811612C1

BEAM

ASSY, hitch RH

1шт.

271735

BODY,Hex, 5/8" - 11 x 5", Gr 5

5/8-11 x 5 hex-hd

2шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

811627C1

BOLT

U-BOLT, hitch

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

811676C1

PLATE

hitch tie

2шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

5/8-11 x 7 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

597326R1

SPACER

hitch clevis, for use w/machines equipped w/605866R91, tongue-type hitch

1шт.

6

597324R1

CLEVIS

hitch

1шт.

7

605866R91

TOW BAR

TONGUE-TYPE HITCH ASSY, for used on tractors with latch pins over 1-1/2 to 1-3/4 inch dia

1шт.

608501R2

BOLT,Hex, 1" - 8 x 5 1/2", Drilled

1-8 x 5-1/2 hex-hd dld

1шт.

427649

SLOTTED NUT,1"-8, G5

NUT, 1-8 hex-sltd

1шт.

614451R1

WASHER

1.031 x 1.75 x .105

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.
