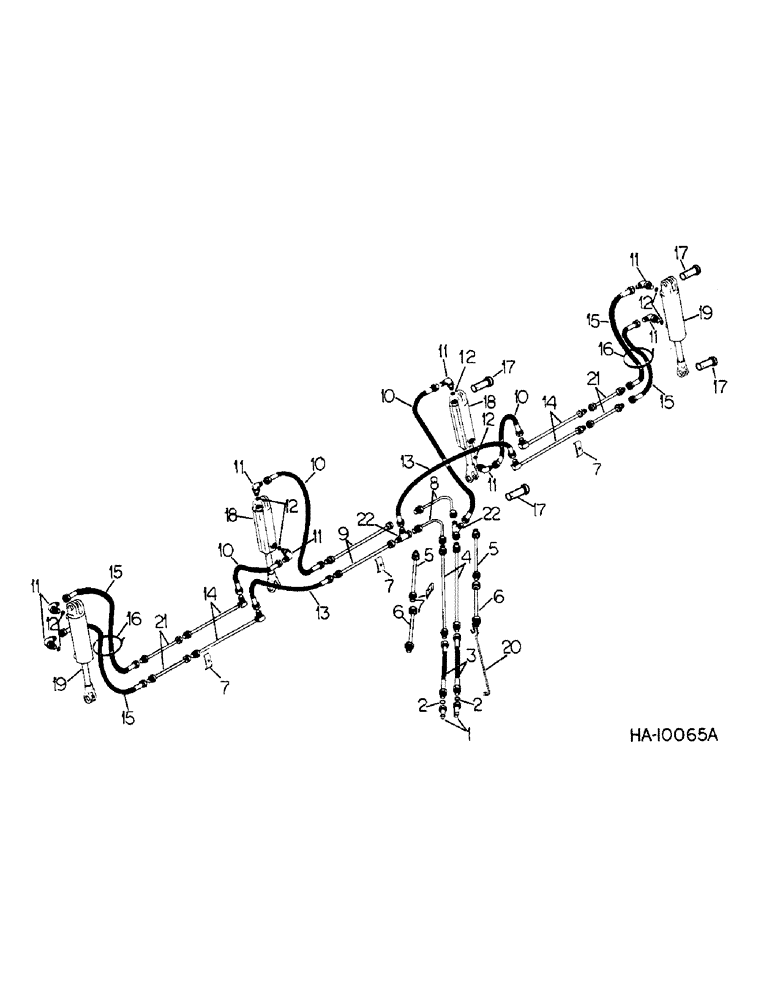

Запчасти Case IH 645 (C-23) - 645 VIBRA CHISEL, 31-1/2 FOOT WING, DEPTH CONTROL HYDRAULICS WITH WELDED CYLINDER

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic hose male, or

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic, recommended hydraulic parts

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler, recommended hydraulic parts

2шт.

3

811270C1

HOSE

80 in. hydraulic front

2шт.

4

TUBE ASSY, 174.8 inch in length, for service order 1-813086C1, tube assy & 1-813087C1, tube

2шт.

5

813086C1

TUBE,0.375" OD, 87.4" Length

ASSY, hyd front extension

2шт.

6

813087C1

TUBE,0.375" OD, 87.4" Length

ASSY, hydraulic front

2шт.

7

614323R2

CLAMP

hydraulic tube

13шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

9шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 x 1-3/4 hex-hd

4шт.

120376

NUT,5/16"-18, G5

13шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

8

812670C1

TUBE

ASSY, hydraulic corner

2шт.

9

812668C1

TUBE,0.375" OD, 50.5" Length

ASSY, hydraulic RH cylinders

2шт.

10

813077C1

HOSE ASSY.

HOSE, 55 in. rockshaft master hydraulic cylinder

4шт.

11

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 hyd 37 deg flared tube 90 deg w/nut and washer

8шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hydraulic connection

8шт.

13

813006C1

HOSE

85 in. hyd cyl jumper

2шт.

14

813003C1

TUBE,0.375" OD, 64" Length

ASSY, slave cyl hydraulic

4шт.

15

879612C1

HOSE

32.5 in. slave cylinder hyd

4шт.

16

306132C1

CABLE TIE,14.5" L

TIE, hydraulic hoses, replaces 816502C1

4шт.

17

24581R1

PIN

1 x 3-1/2 std-hd-dld and type 5, 2 per cylinder

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), , 1 per pin 1/4" x 1 1/4"

1шт.

18

812368C91

CYLINDER

CYL ASSY, hyd 3.5 x 8 DA, Cessna, for components refer to hydraulic cylinders section L

1шт.

19

812367C91

CYLINDER

CYL ASSY, hyd 3.25 x 8 DA, Cessna, for components refer to hydraulic cylinders section L

1шт.

87423770R

REMAN-HYD CYLINDER

645 INTERNATIONAL HARVESTER VIBRA CHISEL, Reman for New P/N 812367C91

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

20

651793R2

SUPPORT

flexible hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105 ga

2шт.

21

813002C1

TUBE

hyd extension w/e frame

4шт.

22

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

9/16-18 hyd 37 deg flared tube 90 deg swivel

2шт.
