Запчасти Case IH 645 (C-19[A]) - 645 VIBRA CHISEL, 31-1/2 FOOT WING, SLOW MOVING VEHICLE EMBLEM

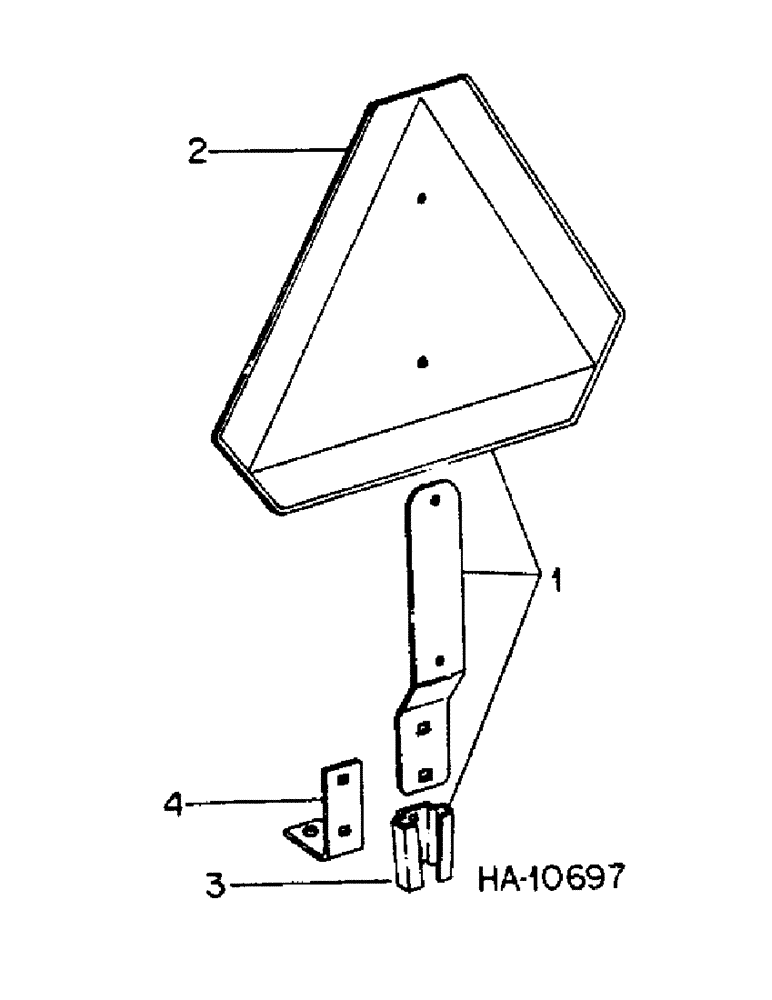

Схема запчастей Case IH 645 - (C-19[A]) - 645 VIBRA CHISEL, 31-1/2 FOOT WING, SLOW MOVING VEHICLE EMBLEM

Артикул

Название

Примечание

Количество

1

407220C1

PACKAGE, SMV emblem, steel, replaces 407218R1

1шт.

2

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

PACKAGE, SMV emblem film kit

1шт.

3

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

811324C1

SUPPORT

ANGLE, SMV emblem mounting

1шт.

Выбрано товаров: 7
