(C-17) - 645 VIBRA CHISEL, 31-1/2 FOOT WING, WING LIFT HYDRAULICS WITH BOLTED CYLINDER

Запчасти Case IH 645 (C-17) - 645 VIBRA CHISEL, 31-1/2 FOOT WING, WING LIFT HYDRAULICS WITH BOLTED CYLINDER

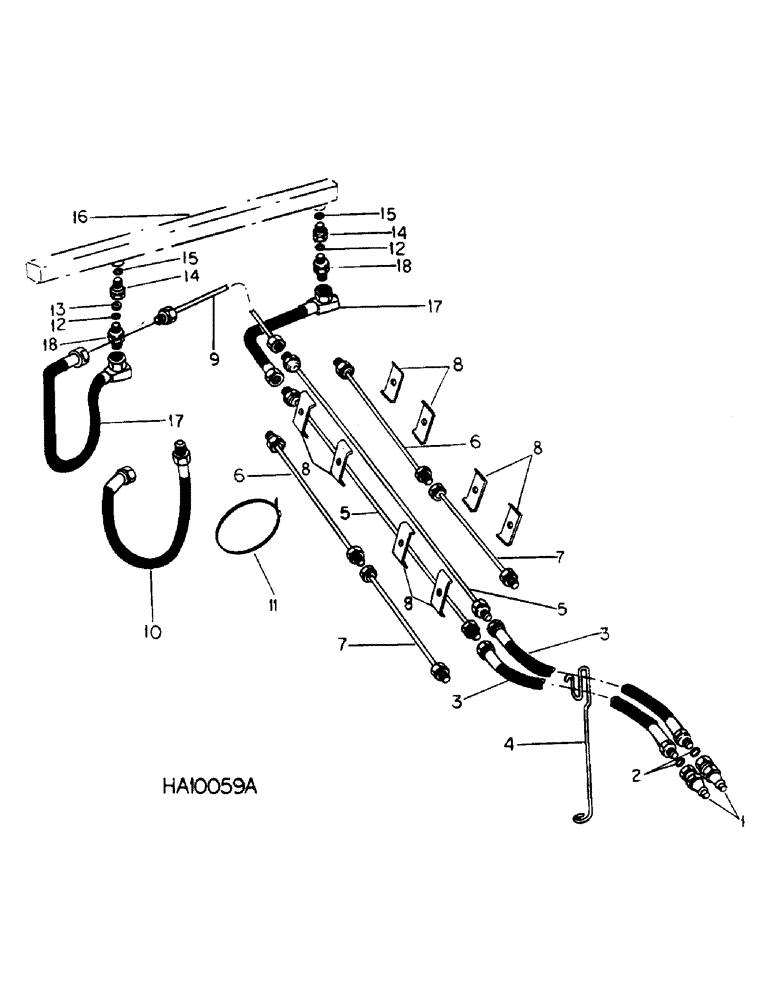

Схема запчастей Case IH 645 - (C-17) - 645 VIBRA CHISEL, 31-1/2 FOOT WING, WING LIFT HYDRAULICS WITH BOLTED CYLINDER
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic hose male or

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic, recommended hydraulic parts

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler, recommended hydraulic parts

2шт.

3

811270C1

HOSE

80 in. hydraulic front

2шт.

4

651793R2

SUPPORT

flexible hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105 ga

2шт.

5

TUBE ASSY, 174.8 inch in length, for service order 1-813086C1, tube assy & 1-813087C1, tube

2шт.

6

813086C1

TUBE,0.375" OD, 87.4" Length

ASSY, hyd front extension

2шт.

7

813087C1

TUBE,0.375" OD, 87.4" Length

ASSY, hydraulic front

2шт.

8

614323R2

CLAMP

tube

8шт.

180085

SPRING

5/16-18 x 1-3/4 hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

9

812670C1

TUBE

ASSY, hydraulic corner

1шт.

10

HOSE, 70 in. wing lift hyd cylinder with male fitting one end and female fitting at the other end, for service order 1-100849C1 hose and 1-9410202 connector

2шт.

11

306132C1

CABLE TIE,14.5" L

TIE, wing lift cyl hyd hose, replaces 816502C1

1шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, wing lift hyd cylinder

2шт.

13

610767R1

DISC

WASHER, retarding disk

1шт.

14

610952R1

ADAPTER

ADAPTOR, wing lift hyd cyl

2шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

wing lift hyd cyl

2шт.

16

812699C91

CYLINDER

CYL ASSY, hyd 4 x 48 DA, cross, for components refer to hydraulic cylinders section L

1шт.

17

100849C1

HOSE

64 in. wing lift hyd cylinder with female fittings at both ends

2шт.

18

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 hyd 37 deg flared tube short swivel, for use with 100849C1 hose

2шт.
