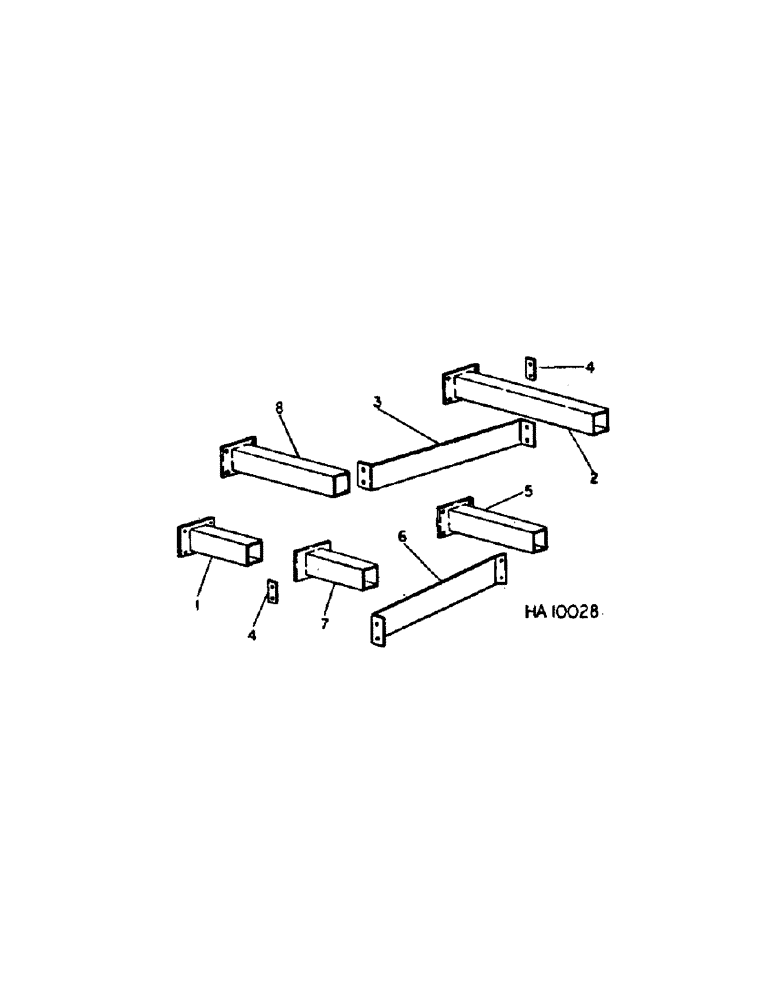

Запчасти Case IH 645 (C-15[A]) - 645 VIBRA CHISEL, 31-1/2 FOOT WING, EXTENSIONS AND BRACES
№
Артикул
Название
Примечание
Количество
1
811363C1
EXTENSION
ASSY, 7 inch frame
1шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
BOLT, 1/2 x 3 type 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
2
(Not used this application)
1шт.
3
811370C1
BRACE
extension straight
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4 type 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
4
(Not used this application)
1шт.
5
811362C2
EXTENSION
ASSY, 15 inch frame
1шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
BOLT, 1/2 x 3 type 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
6
811369C1
BRACE
extension diagonal
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4 type 5
2шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
BOLT, 1/2 x 3 type 5
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
7
811367C1
TUBE ASSY.
EXTENSION ASSY, 10 inch frame
1шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
BOLT, 1/2 x 3 type 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
8
811368C2
EXTENSION
ASSY, 20 inch frame
1шт.
180190
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
BOLT, 1/2 x 3 type 5
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
Выбрано товаров: 21
