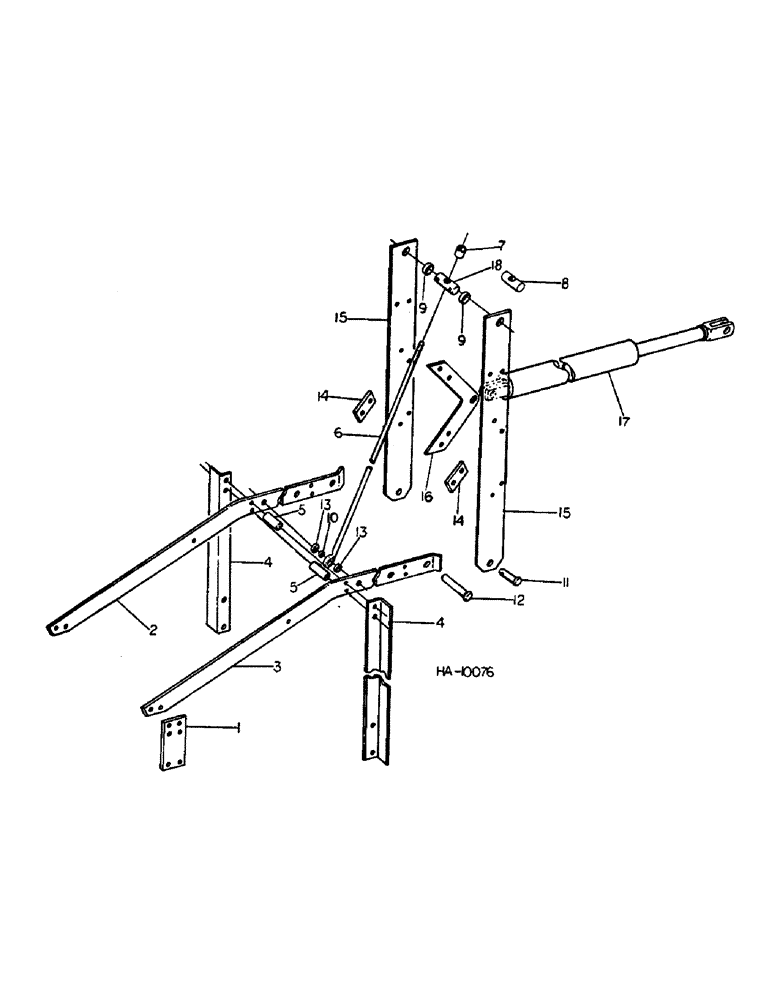

Запчасти Case IH 645 (C-10) - 645 VIBRA CHISEL, 31-1/2 FOOT WING, WING LIFT UNIT

1

813040C1

BAR

wing lift support

4шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8-11 x 5 hex-hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

2

812596C3

SUPPORT, wing frame lift front LH

1шт.

2

812597C3

SUPPORT

wing frame lift front RH

1шт.

3

812597C3

SUPPORT

wing frame lift rear LH

1шт.

3

812596C3

SUPPORT, wing frame lift rear RH

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

BOLT, 5/8-11 x 1-3/4 hex hd

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

4

812599C1

ANGLE

lift support

4шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2-13 x 5-1/2 hex-hd

4шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

5/8-11 x 4-1/4 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

5

103952H

SPACER

1/2 x 3.0625 pipe, machines built prior to Aug 1975

8шт.

5

F18186

SPACER,1/2" Pipe x 3 1/4"

1/2 x 0.250 pipe, machines built August 1975 & since

8шт.

6

812600C3

ROD

wing lift control

2шт.

280954

NUT,3/4"-10, G5

4шт.

23245R1

WASHER

.781 x 1.500 x .164

2шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

3/4-10 x 5 hex-hd , Course threads

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

467750R1

WASHER

.781 x 1.500 x .105

4шт.

7

813135C1

SPACER

control rod

1шт.

8

PIN, control rod, w/out pin connecting holes for machines built prior to March 1977 season, order 1-812595C2 pin, 2-617942R1 pin and 2-21718R1 washer

2шт.

9

813136C1

SPACER

control rod pin prior to March, 1977 season, order 1-812595C2, pin, 2-617942R1, pin and 2-21718R1, washer

4шт.

10

604577R1

SPACER

BUSHING, control rod

2шт.

11

22973R1

PIN,1" x 4 1/2"

1 x 4-1/2 std hd dld

2шт.

456396R1

SPACER, 1 x 1.812 std pipe

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

12

813039C1

PIN

lift support transport

2шт.

599744R1

AXLE PIN

PIN, Q.A. cotter

2шт.

13

671045R1

SPACER

control rod

4шт.

14

812730C1

BAR

arm spacer

16шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2-13 x 3-1/2 hex-hd

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

15

812593C1

BAR

wing lift control arm

4шт.

16

812592C1

ARM, wing lift control

4шт.

17

812699C91

CYLINDER

CYL ASSY, hyd 4 x 48 DA, cross, or

1шт.

17

813104C91

CYLINDER

CYL ASSY, hyd 4 x 48 DA, alco, for components refer to hydraulic cylinders section L

1шт.

18

812595C2

PIN

control rod, w/pin connecting holes

2шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

4шт.

21718R1

WASHER

1.531 x 2.250 x .105

4шт.
