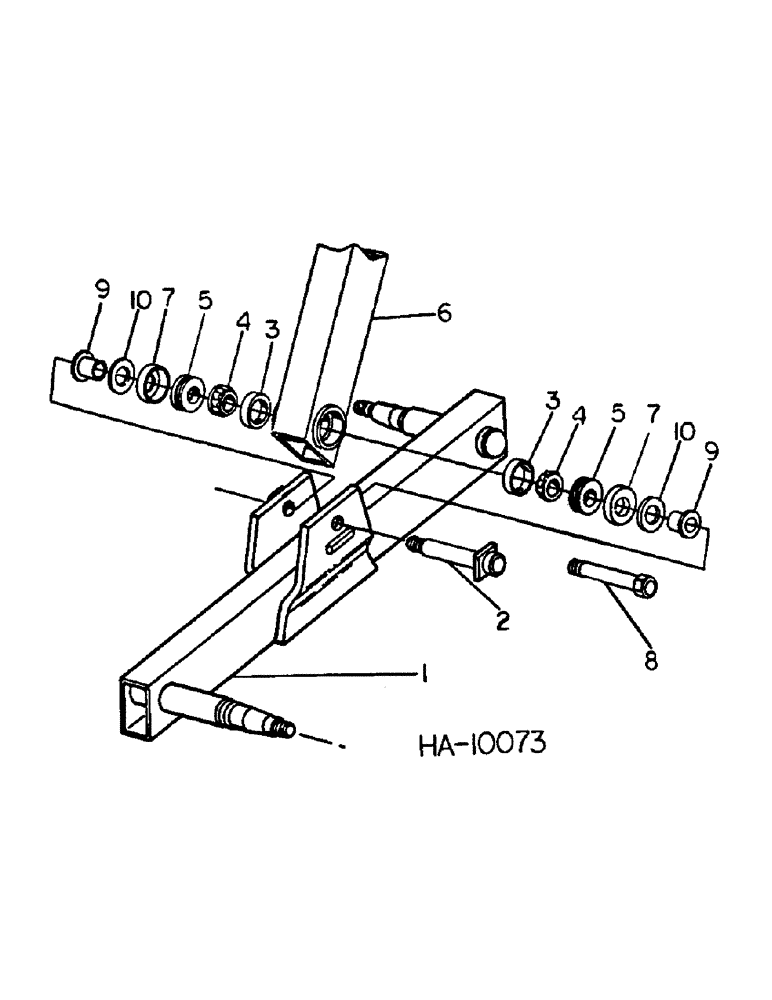

Запчасти Case IH 645 (C-06) - 645 VIBRA CHISEL, 31-1/2 FOOT WING, MAIN FRAME AXLE

1

811396C91

AXLE

ASSY, main frame LH, note, machines built May 1975 & since

1шт.

1

811397C91

AXLE

ASSY, main frame RH, note, machines built May 1975 & since, includes 2-619373R1, washer, 2-70120D, nut and 2-103387, pin

1шт.

2

813121C1

STUD

STUD ASSY, axle pivot, machines built May 1975 & since

2шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-14 sltd-hex

2шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.

3

651817R1

BEARING CUP

CUP, axle pivot bearing, machines built May 1975 & since

4шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, axle pivot bearing, machines built May 1975 & since

4шт.

5

813159C2

SEAL

ASSY, axle pivot, machines built May 1975 & since

4шт.

6

812601C2

SHAFT

ROCKSHAFT ASSY, main frame, Serial Range: refer-rockshaft

1шт.

The stub axle where ref #6 fits on, is part # 854704c91. bj

1шт.

7

812731C1

SEAL

axle pivot machines built prior to May 1975

4шт.

8

813124C2

BOLT,3/4" - 16 x 6"

axle pivot machines built prior to May 1975

1шт.

21165R1

NUT, 3/4-16 hex slt type 8

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

25548R1

WASHER

.812 x 1.500 x .219

4шт.

9

813058C1

BUSHING

axle pivot machines built prior to May 1975

4шт.

10

Q5004

DISC,32.5mm ID x 57mm OD x 1.5mm Thk

WASHER, 1.281 x 2.250 x .054 machines built prior to May 1975

4шт.
