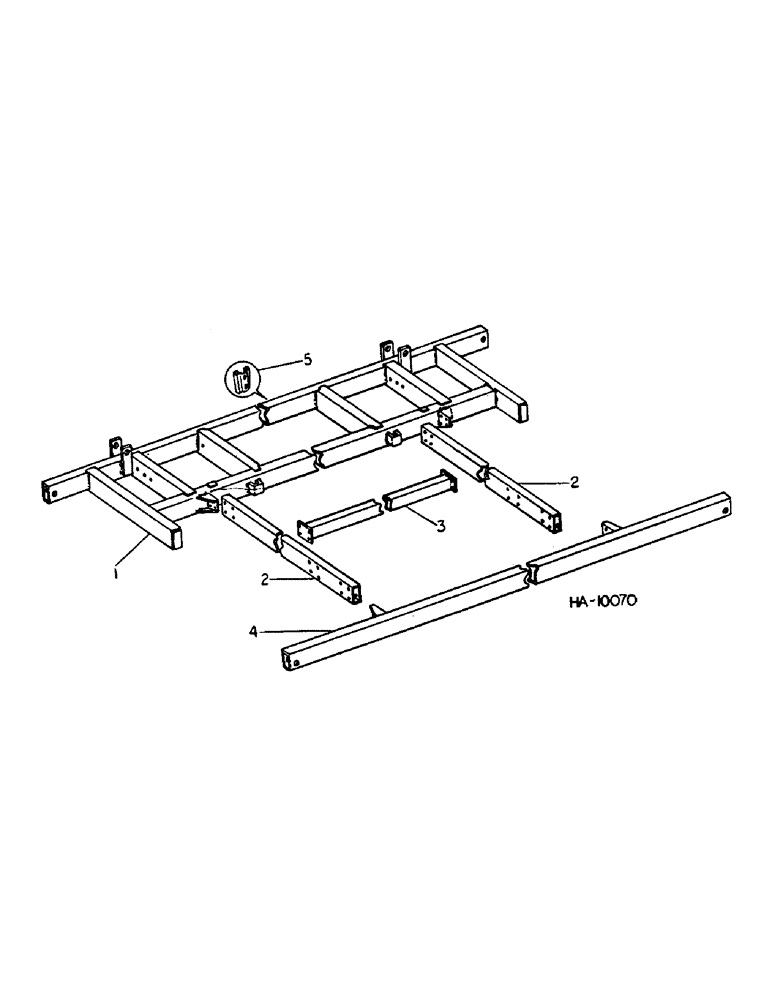

Запчасти Case IH 645 (C-02) - 645 VIBRA CHISEL, 31-1/2 FOOT WING, MAIN FRAME

1

811498C91

FRAME

W/PRODUCT GRAPHIC, 31-1/2 ft main

1шт.

1254170C1

DECAL

PRODUCT GRAPHIC, general caution

1шт.

810170C2

PRODUCT GRAPHIC

wing frames

2шт.

2

813125C1

TUBE

ASSY, frame side

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 hex-hd

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

3

812575C1

TUBE

ASSY, frame front rank

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

812578C1

TUBE,77.5" Length

ASSY, frame front hinge

1шт.

5

398976R1

BRACKET

SMV emblem mtg

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
