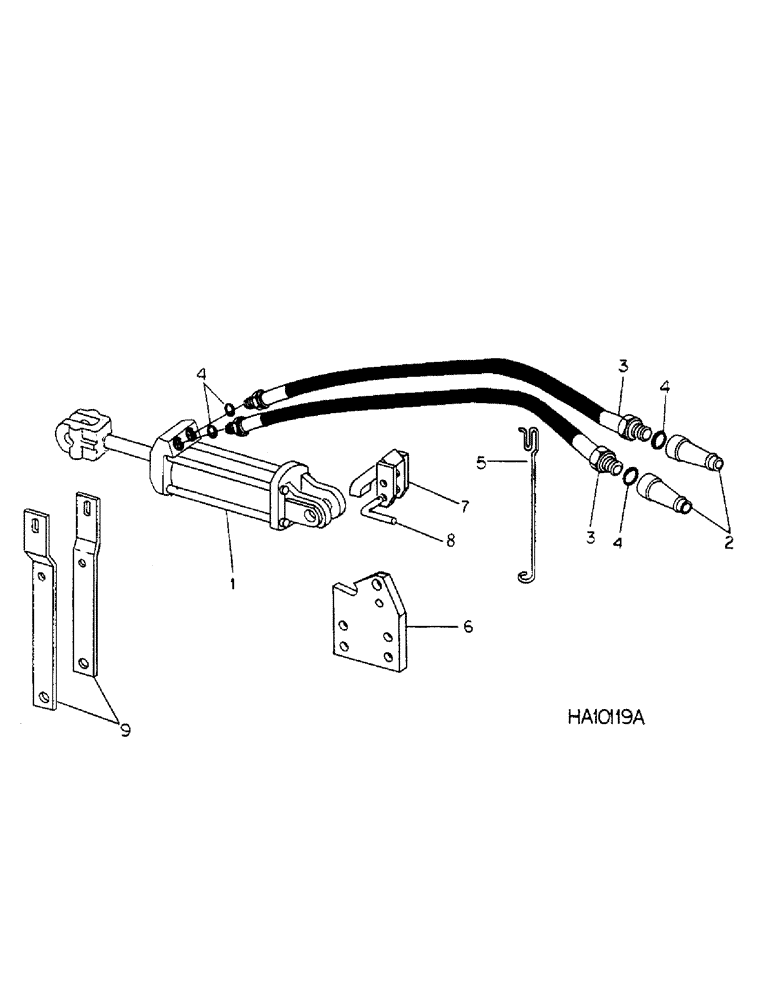

Запчасти Case IH 645 (B-10) - 645 VIBRA CHISEL, TRAIL BEHIND, HYDRAULIC CYLINDER LIFT PARTS

1

145352C91

CYLINDER ASSY.

CYLINDER ASSY, 3.5 x 8 DA2500 PSI, replaces 61105C91, 371292R95 & 546719R91

1шт.

1

1263474C91

CYLINDER ASSY.

CYLINDER ASSY, 3.5 x 8 DA3000 PSI, replaces 403842R94

1шт.

1

388688R95

CYLINDER

CYL ASSY, hyd 4 x 8 DA2500 PSI, recommended hydraulic parts, for components refer to hydraulic cylinders section F

1шт.

1

1343711C1R

REMAN-HYD CYLINDER

645 INTERNATIONAL HARVESTER VIBRA CHISEL, CYL ASSY, hyd 4 x 8 DA2500 PSI, Reman for New PN 388688R95

1шт.

1

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

2

395149R1

QUICK MALE COUPLING

COUPLING, hose half male, opt w/544787R91, coupling

1шт.

2

544787R91

COUPLING, BREAK AWAY

COUPLING, hydraulic male, opt w/395149R1, coupling, recommended hydraulic parts

2шт.

3

407097R91

HOSE

1/2 x 120 in., recommended hydraulic parts

2шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 5/16 x 3/32, recommended hydraulic parts

4шт.

5

651793R2

SUPPORT

hyd hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105 GA

2шт.

6

811326C1

SUPPORT

hyd lift cyl mtg

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 x 2-1/4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

7

811032C1

RETAINER

ASSY, lift cyl

1шт.

21150R1

HEADED PIN,12.7mm OD x 57.15mm L

PIN, 1/2 x 2.250 hd type 1

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

8

602801R1

PIN

retainer locking

1шт.

591107R1

COTTER PIN

Q.A. cotter

1шт.

9

811318C1

STRAP

transport lock out

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

PO28401

HEADED PIN,3/4" x 2 1/16"

PIN, 3/4 x 2.062 pln hd type 5

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

21753R1

WASHER

.781 x 1.500 x .054

1шт.
