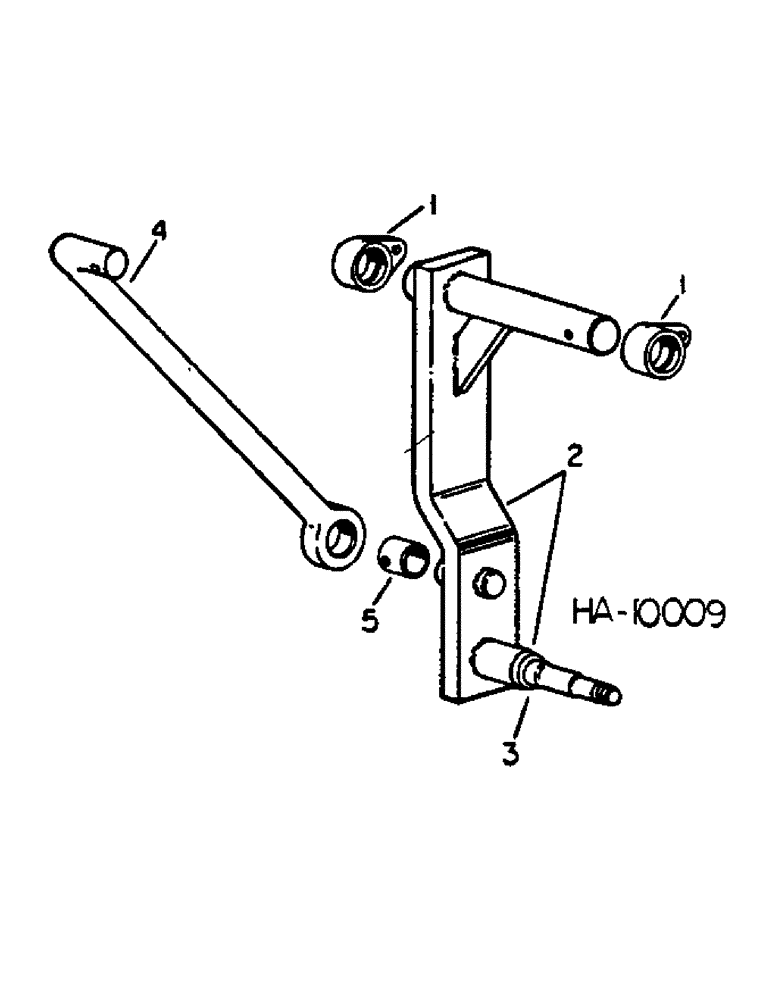

Запчасти Case IH 645 (B-04) - 645 VIBRA CHISEL, TRAIL BEHIND, MAIN FRAME AXLES

1

813201C1

BUSHING,44.58mm ID x 97.79mm OD x 38.1mm L

BEARING, axle

4шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21801R1

WASHER

.281 x .750 x .054

4шт.

2

811306C11

AXLE

ASSY, main frame, includes 1-811317C11, spindle assy

2шт.

108659

PIN

5/16 x 2-3/4 cotter

2шт.

20705R1

WASHER

1.781 x 2.500 x .054

4шт.

3

811317C11

SPINDLE

ASSY, main frame axle, includes 1-467750R1, washer, 1-427640, nut and 1-103396, pin

2шт.

4

811309C1

ROD

lift link

2шт.

608700R1

WASHER

1.281 x 2.350 x .054

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

5

608323R2

BUSHING,32.16mm ID x 41.27mm OD x 40.89mm L

rod

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

20644R1

WASHER

1.656 x 2.250 x .054

2шт.
