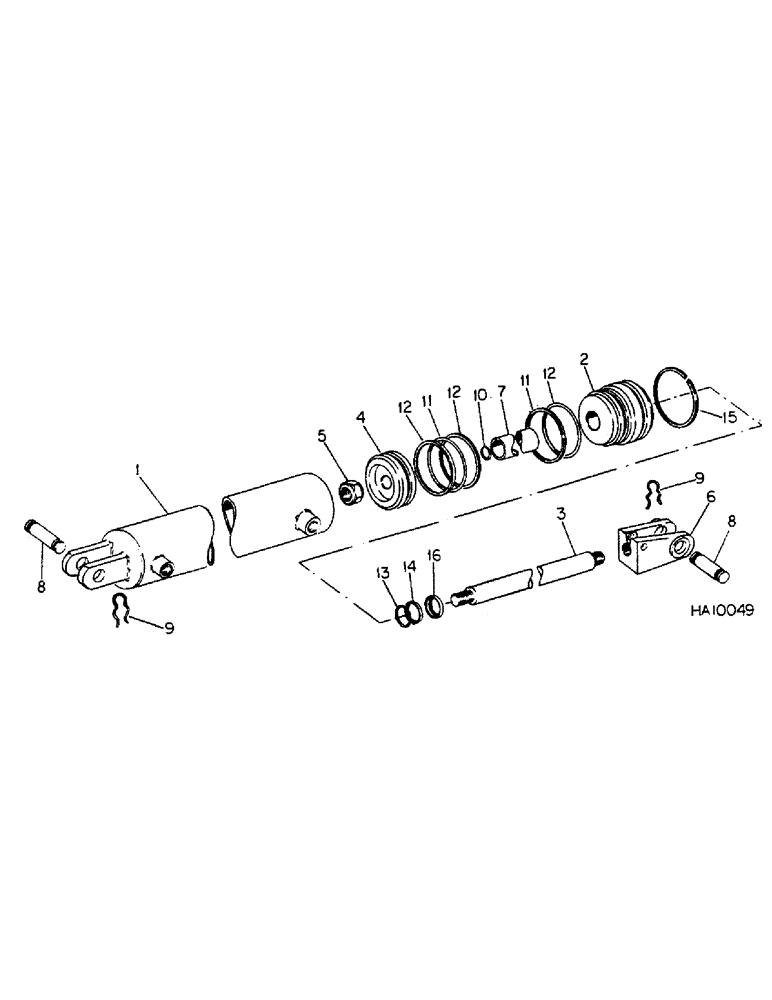

Запчасти Case IH 645 (L-22) - HYDRAULIC CYLINDERS, HYDRAULIC CYLINDER, PRINCE, 3.0 X 48 DOUBLE ACTING

813238C91

CYLINDER

ASSY, 3.0 x 48 DA, Prince

1шт.

1

BODY, hydraulic cylinder (NSS)

1шт.

2

813216C1

END

cylinder head

1шт.

3

812234C1

ANGLE

ROD, cylinder piston

1шт.

4

813369C1

PISTON

cylinder

1шт.

5

9416471

NUT

1-14 hex lock

1шт.

6

813397C91

CLEVIS

ASSY, cylinder rod, includes 1-180089, bolt and 1-120376, nut

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

7

813400C1

SPACER, piston rod

1шт.

8

813456C1

PIN

clevis

2шт.

9

813464C1

PIN

clevis retaining

2шт.

10

O-RING, 1.000 x 1.125 x .063, note (NSS)

1шт.

11

O-RING, 2.625 x 3.00 x .188, note (NSS)

2шт.

12

WASHER, o-ring back-up, note (NSS)

3шт.

13

O-RING, 1.250 x 1.500 x .125, note (NSS)

1шт.

14

WASHER, o-ring back-up, note (NSS)

1шт.

15

RING, cylinder end retaining, note (NSS)

1шт.

16

SEAL, piston rod wiper, note (NSS)

1шт.

813454C91

SEAL KIT

hydraulic cylinder seal repair, consists of ref nos 10 thru 16

1шт.
