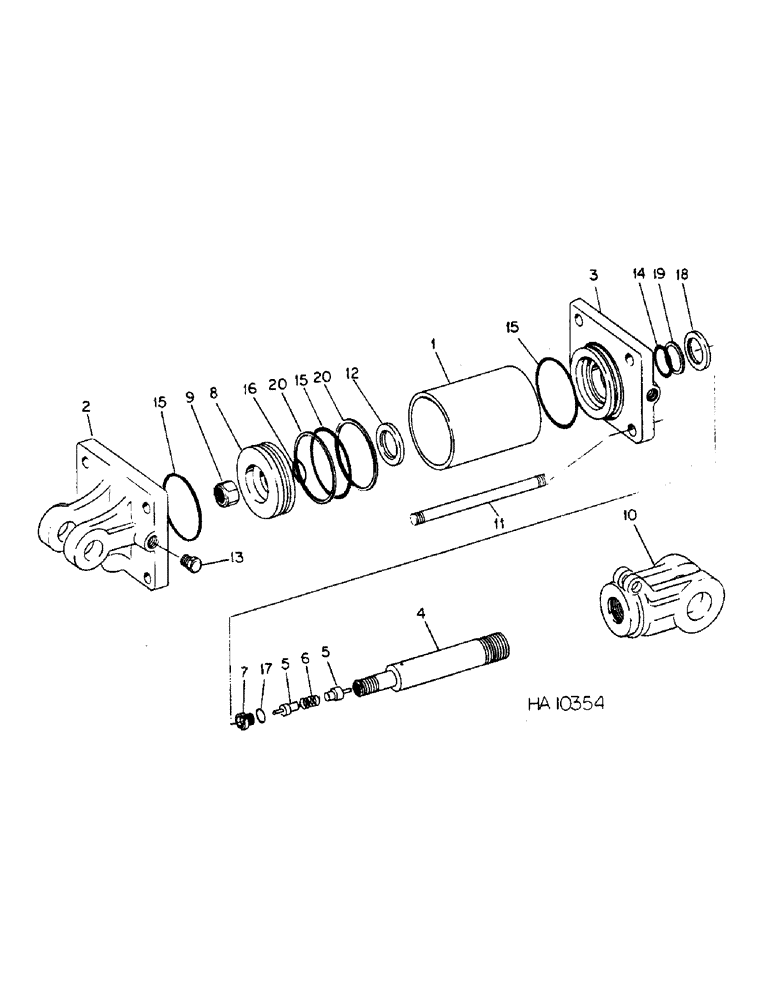

Запчасти Case IH 645 (L-20) - HYDRAULIC CYLINDERS, HYDRAULIC CYLINDER, CROSS, 3.25 X 8 DOUBLE ACTING

812736C91

CYLINDER

ASSY, 3.25 x 8 DA, Cross

1шт.

87423770R

REMAN-HYD CYLINDER

645, 5000 both INTERNATIONAL HARVESTER VIBRA CHISEL, Reman for New P/N 812736C91

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

1

TUBE, cylinder body (NSS)

1шт.

87423770R

REMAN-HYD CYLINDER

5000, 645, Reman For New P/N's 81273691 & 87423770, N.A. Only

1шт.

87423770C

CORE-HYD CYLINDER

Return Number, For N.A. Only

1шт.

2

812583C1

CLEVIS

cylinder base

1шт.

3

812598C1

END

cylinder

1шт.

4

812603C1

ROD

cylinder piston

1шт.

5

812604C1

VALVE

piston rod poppet

2шт.

6

812628C1

SPRING

poppet valve

1шт.

7

812629C1

SEAT

poppet valve

1шт.

8

812645C1

PISTON

cylinder

1шт.

9

75773C1

NUT

1-14 hex lock

1шт.

10

812266C1

CLEVIS

piston rod

1шт.

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

812648C1

ROD

cylinder tie

4шт.

124634

NUT,9/16"-18, G5

8шт.

12

812650C1

COLLAR

piston stop

1шт.

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

1шт.

13

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

O-RING, 1.250 x 1.500 x .125, note hydraulic cylinder end (NSS)

1шт.

15

O-RING, 2.875 x 3.250 x .188, note (NSS)

3шт.

16

O-RING, 1.000 x 1.250 x .125, note (NSS)

1шт.

17

O-RING, .468 x .624 x .078, note (NSS)

1шт.

18

SEAL, wiper oil, note (NSS)

1шт.

19

WASHER, o-ring back-up, note (NSS)

1шт.

20

WASHER, piston o-ring back-up, note (NSS)

2шт.

812653C1

KIT

hyd cyl seal repair, consists of ref nos 14 thru 20

1шт.
