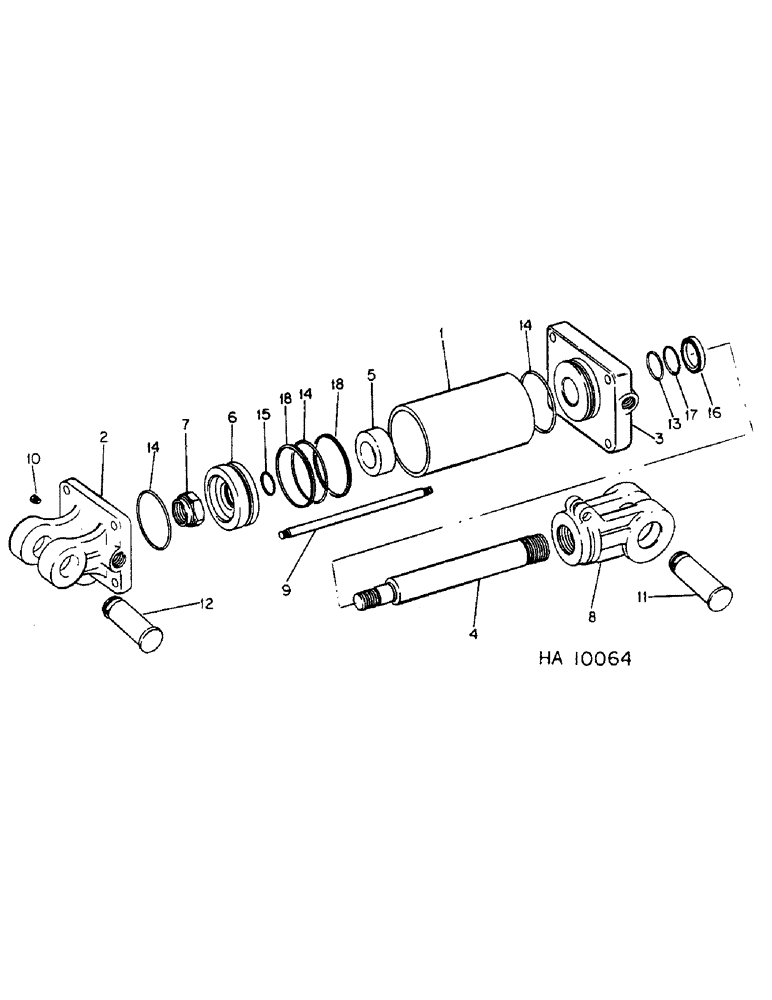

Запчасти Case IH 645 (L-17) - HYDRAULIC CYLINDERS, HYDRAULIC CYLINDER, CROSS, 4 X 48 DOUBLE ACTING

812699C91

CYLINDER

ASSY, 4 x 48 DA, Cross

1шт.

1

BODY, cylinder (NSS)

1шт.

2

812701C1

CLEVIS

cylinder base

1шт.

3

812700C1

CAP

END, cylinder

1шт.

4

812690C1

ROD ASSY.

ROD, cylinder piston

1шт.

5

812689C1

SPACER, piston rod

1шт.

6

812688C1

PISTON

cylinder

1шт.

7

24568R1

NUT,1"-14, GB

1-NF cad P/T lock type 5

1шт.

8

812266C1

CLEVIS

piston rod

1шт.

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9

812687C1

ROD, cylinder tie

4шт.

425-1110

NUT,5/8"-18, G5

5/8-NF type 5

8шт.

10

9410359

PLUG

1/2 C-Z str thd o-ring boss

1шт.

11

812171C1

PIN

piston rod clevis mounting

1шт.

591107R1

COTTER PIN

quick attachable cot

1шт.

12

812716C1

PIN

base clevis mounting

1шт.

591107R1

COTTER PIN

quick attachable cot

1шт.

13

O-RING, 1.250 x 1.500 x .125, note (NSS)

1шт.

14

O-RING, 3.625 x 4.000 x .188, note (NSS)

3шт.

15

O-RING, 1.000 x 1.250 x .125, note (NSS)

1шт.

16

RING, pistoon rod wiper, note (NSS)

1шт.

17

RING, piston rod back-up, note (NSS)

1шт.

18

RING, back-up, note (NSS)

2шт.

812719C1

SEAL KIT

PACKAGE, seal & o-ring service, note, consists of ref. nos. 13 thru 18

1шт.
